Schmersal 101209061 MZM 100 Safety Interlock, Thermoplastic Enclosure, 40 mm x 179 mm x 40 mm
- MPN: 101209061
- PPN: SCM-101209061
CAD
$1087.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MZM 100 Safety Interlock, Thermoplastic Enclosure, 40 mm x 179 mm x 40 mm
Features
- Guard locking monitored
- Connector M23, 8+1-pole
- Power to lock
- Automatic latching
- Solenoid interlocks (for the protection of man) with innovating and unique operating principle
- 40 mm x 179 mm x 40 mm
- Electronic contact-free, coded system
- Thermoplastic enclosure
- Max. length of the sensor chain 200 m
- 3 LEDs to show operating conditions

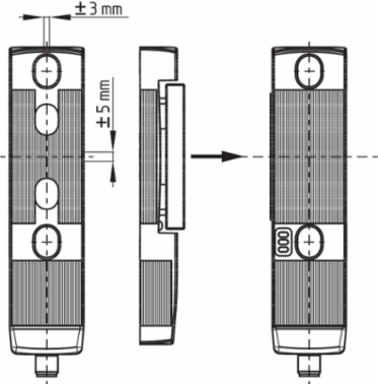

- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Intelligent diagnosis

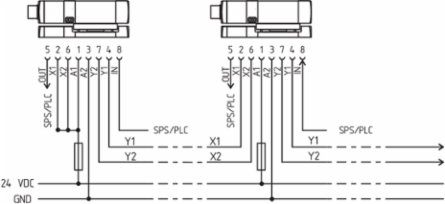

- Self-monitoring series-wiring
- Patented
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-13
- 0.25 A
- Classification ZVEI CB24I, Sink
- C1
Voltage drop U1 V
Voltage, Utilisation category DC-1324 VDC
Classification ZVEI CB24I, SourceC1
Safety appraisal
- Standards
- IEC 61508 | EN ISO 13849-1
Electrical data
- Operating voltage, minimum
- 20.4 VDC
- No-load supply current I
- 600 mA
- Required rated short-circuit current to EN 60947-5-1
- 100 A
- Switching frequency, maximum
- 1 Hz
Operating voltage, maximum26.4 VDC
Operating current50 mA
NoteCable length and cable section alter the voltage drop depending on the output current
Electrical data - Fail-safe digital inputs
- Switching thresholds
- −3 V … 5 V (Low) | 15 V … 30 V (High)
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Classification ZVEI CB24I, SinkC1
Safety appraisal - Interlocking
- Performance level, up to
- e
- PFH-value
- 3.54 x 10⁻⁹ /h
- Mission Time
- 20 Year(s)
Control category4
Safety Integrity Level (SIL), suitable for applications in3

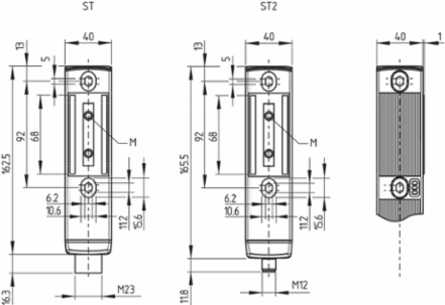

Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 179 mm
Width of sensor40 mm
Electrical data - Solenoid control
- Switching thresholds
- -3 V … 5 V (Low) | 15 V … 30 V (High)
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Classification ZVEI CB24I, SinkC0

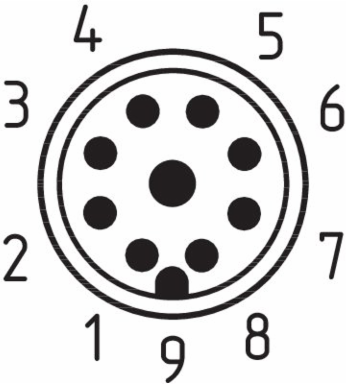

Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
- PIN 9
- without function
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to VDE 01003
General data - Features
- Power to lock
- Yes
- Latching
- Yes
- Short-circuit recognition
- Yes
- Safety functions
- Yes
- Number of safety contacts
- 2
Guard locking monitoredYes
Short circuit detectionYes
Series-wiringYes
Integral System Diagnostics, statusYes
Number of Series-wiring of sensors31
General data
- Standards
- IEC 61508 | EN 60947-5-3 | EN ISO 13849-1 | EN ISO 14119
- Coding level according to ISO 14119
- Low
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Time to readiness, maximum
- 4,000 ms
- Duration of risk, maximum
- 150 ms
general informationUniversal coding
Active principleinductive
Gross weight600 g
Reaction time, maximum150 ms
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
- Ambient temperature, maximum
- +55 °C
- Storage and transport temperature, maximum
- +70 °C
- Relative humidity, maximum
- 95 %
- Resistance to vibrations to EN 60068-2-6
- 10 … 150 Hz, amplitude 0.35 mm
- Protection rating
- III
Ambient temperature, minimum-25 °C
Storage and transport temperature, minimum-25 °C
Relative humidity, minimum30 %
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Electrical data - Diagnostic output
- Voltage drop U
- 2 V
- Current, Utilisation category DC-13
- 0.05 A
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Connection technique
- Terminal Connector
- Connector M23, 8+1-pole
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Clamping force, typically
- 750 N
- Latching force
- 15 N
Note (Mechanical lifetime)Actuating speed < 0.5 m/s | Operations for door weights ≤ 5 kg
Clamping force, guaranteed500 N
Accessory
- Recommendation (actuator)
- MZM 100-B1.1
Approval - Standards
- Certificates
- TÜV | cULus | EAC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
