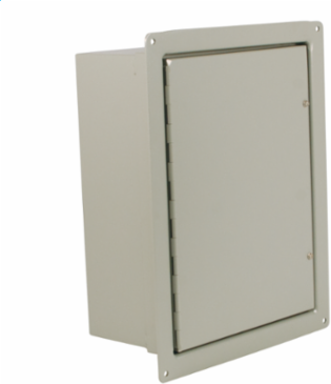

Wiegmann WA161206FM N12 Single Door Flush Wall-Mount 16X12X6 Carbon Steel - Gray
- MPN: WA161206FM
- UPC: 786725446001
- PPN: HBL-WA161206FM
- UNSPSC: 39121324
CAD
$2093.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 Single Door Flush Wall-Mount 16X12X6 Carbon Steel - Gray
Features
- Designed to house electrical controls, terminals and instruments
- Provide protection from dirt, dust, oil and water
- External frame allows enclosure to recessed in wall
- Enclosure is used in applications where external space is limited or in high traffic area.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Designed to house electrical controls, terminals and instruments. Provides protection from dirt, dust, oil and water. External frame allows enclosure to be recessed in a wall. Enclosure is used in applications where external space is limited or in high traffic areas.
- Cover Type
- Door
- Depth
- 6 in
- Height
- 16 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 28 lb.
- Mounting Type
- Mounting Frame
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCL,NEMA12,1D,FM,16X12X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Captivated Screws
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 28.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- NAICS Code
- 3359326101
Number of Doors (Fixed)1
ColorAnsi-61 Gray Smooth
Cubic Capacity1152 cu.in
FinishSmooth
MountingMounting Frame
StandardcULus
Width12 in
Finish TypeSmooth
Nema Rating12
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P032
UL ListedYes
MaterialCarbon Steel
BOX SIZE16.000x6.000x12.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725446001
Pallet Weight0.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
