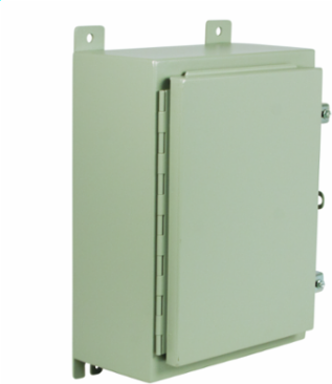

Wiegmann N12122406 N12 Single Door Wall-Mount 12X24X6 Carbon Steel - Gray
Wiegmann N12122406 N12 Single Door Wall-Mount 12X24X6 Carbon Steel - Gray
- MPN: N12122406
- UPC: 786725342051
- PPN: HBL-N12122406
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$935.20/ EA
Description
N12 Single Door Wall-Mount 12X24X6 Carbon Steel - Gray
Features
- Intended for use in housing electrical and electronic controls, instruments, components and associated wiring, these enclosures incorporate hinged doors which provide convenient access
- Designed for indoor use in protecting components from dust, dirt, oil and water.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 24.000 in
- Application
- Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water.
- Cover Type
- Door
- Depth
- 6 in
- Height
- 12 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 33 lb.
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- NEMA 12,CS,1D,WM,12X24X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 33.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
Country of OriginMX
Number of Doors (Fixed)1
ColorAnsi-61 Gray Smooth
Cubic Capacity1728 cu.in
FinishSmooth
MountingExternal Mounting Feet
StandardcULus
Width24 in
Finish TypeSmooth
Nema Rating12
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P032
UL ListedYes
MaterialCarbon Steel
BOX SIZE12.000x6.000x24.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725342051
Pallet Weight0.000 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
