Wiegmann N12482408 N12 Single Door Wall-Mount 48X24X8 Carbon Steel - Gray
Wiegmann N12482408 N12 Single Door Wall-Mount 48X24X8 Carbon Steel - Gray
- MPN: N12482408
- UPC: 786725343751
- PPN: HBL-N12482408
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2750.00/ EA
Description

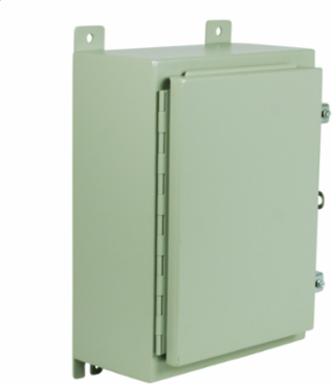

N12 Single Door Wall-Mount 48X24X8 Carbon Steel - Gray
Features
- Intended for use in housing electrical and electronic controls, instruments, components and associated wiring, these enclosures incorporate hinged doors which provide convenient access
- Designed for indoor use in protecting components from dust, dirt, oil and water.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 24.500 in
- Application
- Intended for use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oi
- Cover Type
- Door
- Depth
- 8 in
- Height
- 48 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 97 lb.
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N12,SD,CS,48X24X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 97.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 51.000 in
- Pallet Width
- 40.000 in
Country of OriginUS
Number of Doors (Fixed)1
ColorAnsi-61 Gray Textured
Cubic Capacity9216 cu.in
FinishTextured
MountingExternal Mounting Feet
StandardcULus
Width24 in
Finish TypeTextured
Nema Rating12
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P032
UL ListedYes
MaterialCarbon Steel
BOX SIZE10.000x51.000x24.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725343751
Pallet Height44.500 in
Pallet Weight389.000 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
