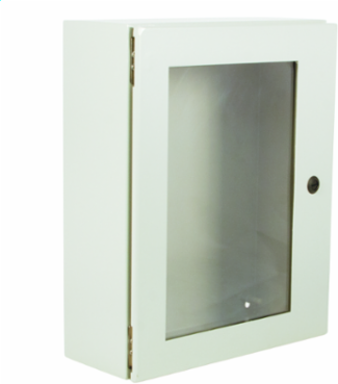

Wiegmann N412242410WC N412 Single Door Wall-Mount Ultimate with Window 24X24X10 Carbon Steel - Gray
Wiegmann N412242410WC N412 Single Door Wall-Mount Ultimate with Window 24X24X10 Carbon Steel - Gray
- MPN: N412242410WC
- UPC: 786725863839
- PPN: HBL-N412242410WC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1568.82/ EA
Description
N412 Single Door Wall-Mount Ultimate with Window 24X24X10 Carbon Steel - Gray
Features
- Hubbell Wiegmann N12C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Streamlined styling, flush latching and attrative durable finish complement any high tech electronic equipment.
Specifications
Specifications
- Actual Depth
- 11.75 in
- Actual Width
- 24.06 in
- Country of Origin
- US
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412WC ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined
- Color
- ANSI-61 Gray, Textured
- Cubic Capacity
- 5760 cu.in
- Finish
- Smooth
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 58 lb.
- Knockouts
- No
- Nema Rating
- 1,3R, 12, 13, 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,SD,WINDOW,24X24X10, ULTIMATE
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725863839
- Pallet Height
- 40.500 in
- Pallet Weight
- 195.000 lb.
Actual Height26.5 in
Buy American CompliantContact Manufacturer
Each - Width24.500 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth10 in
Height24 in
NEMA Rating1,3R, 12, 13, 4
Sub BrandUltimate Series
Width24 in
Finish TypeSmooth
Mounting TypeMounting Holes
Number of Holes4
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P038
UL ListedYes
MaterialCarbon Steel
BOX SIZE12.000x27.000x24.500 (in)
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- CSA Approved
- NO
- ETL
- NO
- EU RoHS Indicator
- Yes
cULusYES
Certified ListedcULus;IEC
ListingsUL, CSA
