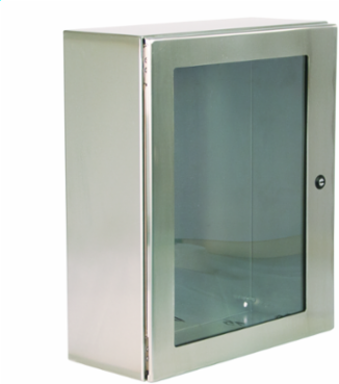

Wiegmann N412302408WSSC N412 Single Door Wall-Mount Ultimate with Window 30X24X8 304 Stainless Steel
- MPN: N412302408WSSC
- UPC: 786725860241
- PPN: HBL-N412302408WSSC
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Wall-Mount Ultimate with Window 30X24X8 304 Stainless Steel
Features
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 30 in
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr
- Color
- Brushes Stainless Steel
- Cubic Capacity
- 5760 cu.in
- Finish
- Smooth Grained Stainless
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 56 lb.
- Finish Type
- Smooth Grained Stainless
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P057
- UL Listed
- Yes
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 56.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth9.75 in
Actual Width24.06 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth8 in
Height30 in
NEMA Rating1,3R,12,13,4,4X
Sub BrandUltimate Series
Width24 in
Engineering Drawing 2 Display TextMOD Center Drawings Instructions
KnockoutsNo
Nema Rating1,3R,12,13,4,4X
ARRA CompliantContact Manufacturer
Description - InvoiceN412,ULTIMATE,WINDOW,30X24X8
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type1/4 Turn
ConstructionContinuously Welded Seams
SeriesN412-WSSC Series
BOX SIZE10.000x33.000x25.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725860241
Pallet Height44.500 in
Pallet Weight261.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
