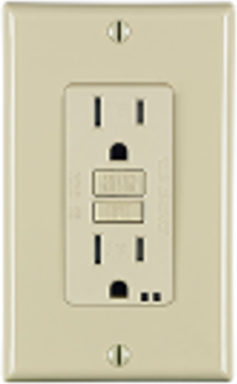

Leviton S7599-I SmartlockPro 15 Amp GFCI Receptacle, Tamper-Resistant, 125 Volt, Slim Profile
- MPN: S7599-I
- PPN: LEV-S7599-I
CAD
$25.41
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Testing a GFCI is a good idea that's sometimes forgotten. Now the SmartlockPro Self-Test GFCI automates the process and performs a self-test every fifteen minutes. It adds an extra level of safety, testing itself to confirm that protected power is available. If the self-test detects any condition that would indicate GFCI protection might be compromised, visual and audible indicators provide an alert. All these robust features are packed into the slimmest GFCI profile on the market for easier installation in residential and commercial settings.
Specifications
Standards and Certifications
- NEMA
- WD-6
- UL498
- Yes
- NOM
- 057
- Fed Spec WC-596
- Yes
ANSIC-73
CSA C22.2 No. 42Yes
UL 943File E48380
CSA-C22.2 No. 144.1-06File LR-57811
Material Specifications
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double-Wipe .031 Thick
- Grounding Screw
- Plated Steel
- Clamps
- Brass
Body MaterialThermoplastic
Terminal ScrewsPlated Steel
YokeZinc-Plated Steel
Notesw/ Wallplate
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Product ID
- Ratings are permanently marked on device
Terminal Accom.14-10 AWG
Product Features
- Feature
- Tamper-Resistant
- Voltage
- 125 Volt
- Pole
- 2
- Wire
- 3
- Face Material
- Thermoplastic
- Grounding
- Self-Grounding
- Strap Material
- Galvanized Steel
- Fed Spec WC-596
- Yes
- Notes
- w/ Wallplate
- Country of Origin
- China
Amperage15 Amp
NEMA5-15R
Trip LevelClass A, 5mA plus or minus 1mA
TerminationBack & Side 20A Feed-Thru
Body MaterialThermoplastic
ColorWhite
Standards and CertificationsUL/CSA
Warranty2-Year Limited
GradeResidential
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-35C-+66C
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
Short Circuit Current Rating10KA
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
