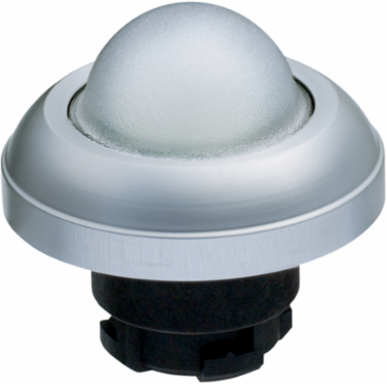

Schmersal 101188297 RMLHWS Round Illuminated Signal Push Button, 39.5 mm Diameter, IP65, Aluminium
- MPN: 101188297
- PPN: SCM-101188297
CAD
$49.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RMLHWS Round Illuminated Signal Push Button, 39.5 mm Diameter, IP65, Aluminium
Features
- high calotte
- for Ba9S LED's
Documentation & Downloads
Specifications

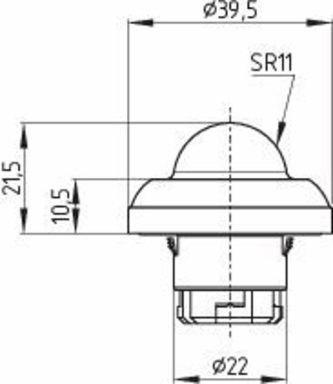

Mechanical data - Dimensions
| Diameter total | 39.5 mm |
|---|---|
| Diameter of the dome | 22 mm |
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
| Height of the dome | 11 mm |
|---|---|
| Diameter of the front ring | 39.5 mm |
| Thickness, of the front panel, minimum | 1 mm |
| Spacing | 40 x 50 mm |
General data - Features
| Illuminable | Yes |
|---|---|
| Fully insulated | Yes |
| Mounting flange | Yes |
|---|---|
| Integral system diagnostics, general | No |
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | Round | High calotte |
| Sealing type | Membrane | Lip gaskets | Form seals |
| Material of the front ring | Aluminium |
| Colour of the front ring | Silver |
| Versions | Indicator light |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the dome | Plastic |
| Colour of the dome | White |
| Gross weight | 45 g |
Ambient conditions
| Degree of protection | IP65 |
|---|
| Ambient temperature | -25 ... +75 °C |
|---|
Mechanical data
| Mounting | Mounting flange ELM |
|---|
| Tightening torque of the screw | 0.6 Nm |
|---|
