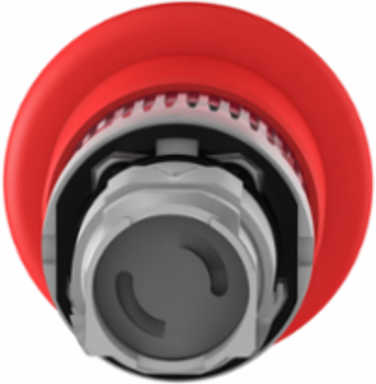

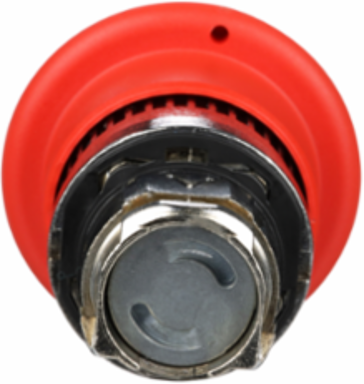

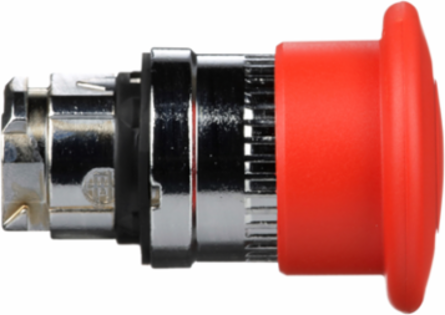

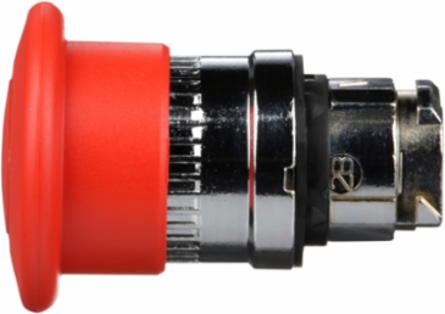

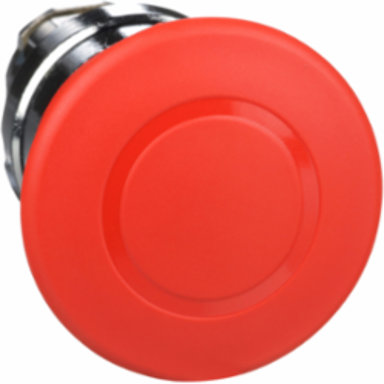

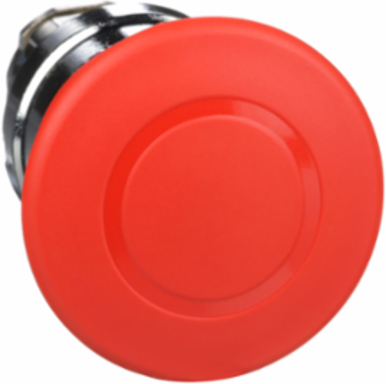

Schneider Electric ZB4BT84 Emergency Stop Head 40mm Mushroom Red, IP66, 22mm Diameter
- MPN: ZB4BT84
- PPN: SCH-ZB4BT84
CAD
$43.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The ZB4BT84 is a 40mm red mushroom head operator designed for critical Emergency Stop (E-Stop) applications. It features a specialized "trigger action" mechanism, meaning the electrical contacts will not change state until the head is fully latched. This prevents "teasing" the button and ensures that once the safety command is initiated, the machine remains in a safe, de-energized state.
- This E-Stop utilizes a Push-Pull reset method. To clear the emergency signal, the operator must physically pull the red mushroom head back to its original position. This manual requirement ensures that a deliberate action is taken to acknowledge the fault before the control system can be reset, adhering to strict industrial safety protocols.
- As part of the Harmony XB4 metal range, this head features a chromium-plated metal bezel and a high-impact plastic mushroom cap. It is designed to survive the physical abuse typical of factory floors, assembly lines, and outdoor equipment, providing superior mechanical longevity compared to standard plastic alternatives.
- The ZB4BT84 is engineered for extreme environments, carrying IP66, IP67, IP69, and IP69K ratings. This makes it ideal for food and beverage or pharmaceutical facilities that require high-pressure, high-temperature steam cleaning, as well as outdoor applications exposed to driving rain and dust.
- The 40mm diameter mushroom head is finished in a vibrant, non-fading red, providing a large target area for operators in high-stress situations. When mounted against a standard yellow E-Stop nameplate, it creates a high-contrast visual signal that is compliant with international safety visibility standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France, Mexico, United States |
|---|
Physical Attributes
| Cad Overall Depth | 56 mm |
|---|---|
| Cad Overall Width | 40 mm |
| Cad Overall Height | 40 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Electrical Composition Code | C7 4 single front mountingC8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting, C10 4 single and double front mounting |
| Operator Profile 1 Operator Profile | mushroom Ø 40 mm |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0100638071, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0003375735, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 12 % |
| Device Short Name | ZB4 |
| Group Of Product | emergency stop pull to release |
| Main Group | E-stop |
| Mechanical Durability | 300000 cycles |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Reset | push-pull |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | EIME v5.9.3 |
| Total Lifecycle Carbon Footprint | 0.8 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2201004EN |
| Pep Verification Date | 2022-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US |
| Cap/Operator Or Lens Colour | red |
| Package Weight(Lbs) | 74.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 0, no |
| Operator Profile | red mushroom Ø 40 mm, unmarked, mushroom Ø 40 mm |
| Certificate Agency | DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.009061578 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.8 kg CO2 eq., 0.8237132123 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2201004EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 23 % |
| Compatibility Code | ZB4 |
| Electrical Shock Protection Class | class I conforming to IEC 61140 |
| Head Type | standard |
| Marking | unmarked |
| Mounting Diameter | 22.5 mm |
| Product Or Component Type | head for emergency switching off push-button |
| Range Of Product | Harmony XB4 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Type Of Operator | trigger action and mechanical latching |
| Operator Profile 1 Marking | unmarked |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years. |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Pisek, Czech Republic |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US |
| Recyclability Potential In % | 59 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 23 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.8431761708 |
| Environmental Disclosure | ENVPEP2201004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2201004EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X, NEMA 4, NEMA 12 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2201004EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | head for emergency switching off push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001038 |
|---|
| ETIM 9 | EC001038 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
