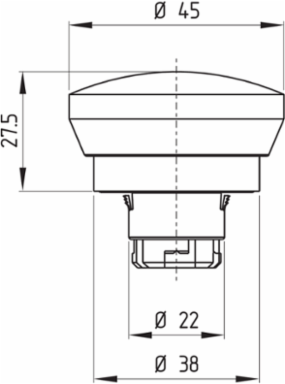

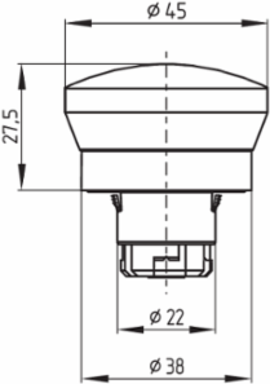

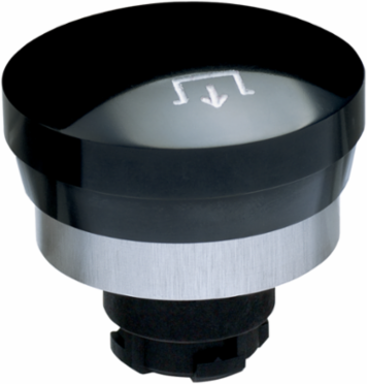

Schmersal 101195091 Emergency Stop Pushbutton, Round Design, 4 mm Actuating Stroke, 22.3 mm Mounting Diameter
Schmersal 101195091 Emergency Stop Pushbutton, Round Design, 4 mm Actuating Stroke, 22.3 mm Mounting Diameter
- MPN: 101195091
- PPN: SCM-101195091
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$234.55/ EA
Description
Emergency Stop Pushbutton, Round Design, 4 mm Actuating Stroke, 22.3 mm Mounting Diameter
Features
- Emergency stop latching pushbutton
- Ex-Zone 1 and 21
Specifications
Explosion protection
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
- Explosion protection category
- 2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db
Mechanical data - Dimensions
- Mounting diameter
- 22.3 mm
Thickness of the front panel, maximum6 mm
Safety classification - Safety outputs
- B
- 100,000 Operations
General data
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
- Material of the identification label
- Stainless steel (V4A)
- Gross weight
- 146 g
DesignRound
Material of the front ringAluminium
Safety classification
- Mission time
- 20 Year(s)
Mechanical data
- Actuating stroke
- 4 mm
Approvals - Standards
- Certificates
- TÜV | IEC Ex
