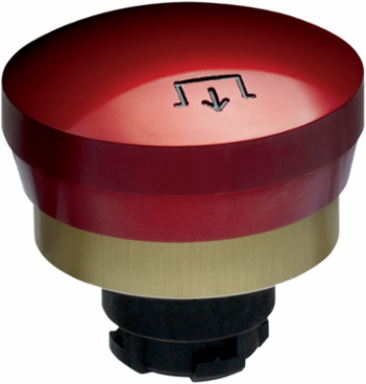

Schmersal 101193587 Emergency Stop Button, 22.3 mm Mounting Diameter, Explosion Protected II 2G Ex ib IIC Gb
- MPN: 101193587
- PPN: SCM-101193587
CAD
$244.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Emergency Stop Button, 22.3 mm Mounting Diameter, Explosion Protected II 2G Ex ib IIC Gb
Features
- Emergency stop latching pushbutton
- Ex-Zone 1 and 21
Documentation & Downloads
Specifications
Explosion protection
| Explosion protection: regulations | EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14 |
|---|---|
| Explosion protection category | 2D | 2G |
| Explosion protection zones | 22 | 2 | 1 | 21 |
|---|---|
| Explosion protection designation | II 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db |

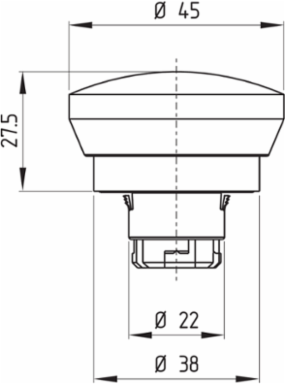

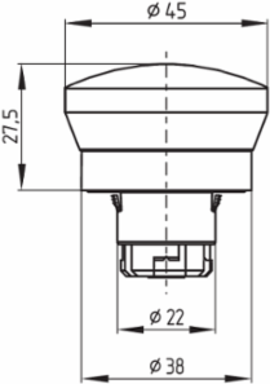

Mechanical data - Dimensions
| Mounting diameter | 22.3 mm |
|---|
| Thickness of the front panel, maximum | 6 mm |
|---|
Safety classification - Safety outputs
| B | 100,000 Operations |
|---|
General data
| Standards | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5 |
|---|---|
| Material of the identification label | Stainless steel (V4A) |
| Gross weight | 200 g |
| Design | Round |
|---|---|
| Material of the front ring | Aluminium |
Safety classification
| Mission time | 20 Year(s) |
|---|
Mechanical data
| Actuating stroke | 4 mm |
|---|
Approvals - Standards
| Certificates | TÜV | IEC Ex |
|---|
