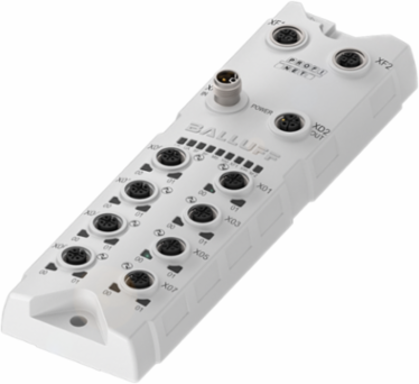

Balluff BNI PNT-508-055-P067 Profinet Network Block, IP68, 16 Digital Inputs/Outputs, 68 x 36.8 x 226 mm
- MPN: BNI PNT-508-055-P067
- PPN: BAL-BNI00EK
CAD
$966.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Profinet Network Block, IP68, 16 Digital Inputs/Outputs, 68 x 36.8 x 226 mm
Documentation & Downloads
Specifications
Additional
- Digital inputs
- 16x PNP, Type 3
- Operating voltage
- 18...30.2 VDC
- Current sum sensor
- 16 A
- Ambient temperature
- -25...70 °C
- Dimensions
- 68 x 36.8 x 226 mm
- Connection COM 2
- M12x1-Female, 4-pin, D-coded
- Connection supply voltage OUT
- M12x1-Female, 5-pin, L-coded
- Auxiliary interfaces
- 8x IO-Link
- Interface IIoT
- REST API
- Port-class
- Type A
- Special characteristics
- Washdown Plus; Washdown
- Secondary features
- Operating Hours Counter; Voltage and Current Monitoring; Boot Cycle Counter; Internal temperature monitoring
- Fast Start-Up (FSU)
- yes
Digital outputs16x PNP
Output current max.4 A short-circuit proof and overload-proof
Current sum actuator16 A
Ingress ratingIP68, IP69K
Connection COM 1M12x1-Female, 4-pin, D-coded
Connection supply voltage INM12x1-Male, 5-pin, L-coded
Connection slots8x M12x1-Female, 5-pin, A-coded
IO-Link version1.1
InterfaceProfinet I/O
Housing materialPPS
BG certifiedyes
Configurable inputs/outputsyes
Country of OriginHungary
