Schmersal 101185097 NHS Main Switch 40A, IP67/IP69K, 48mm Width, 29mm Height, 650g Gross Weight
- MPN: 101185097
- PPN: SCM-101185097
CAD
$453.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

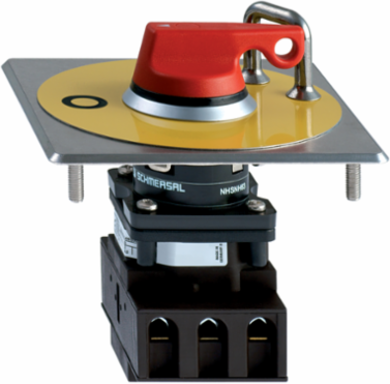

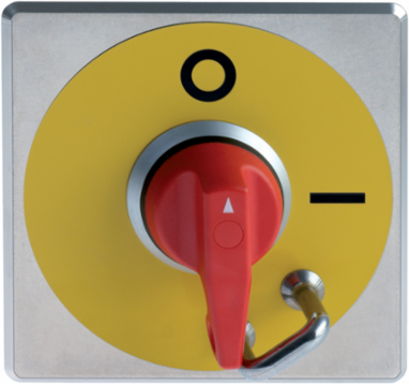

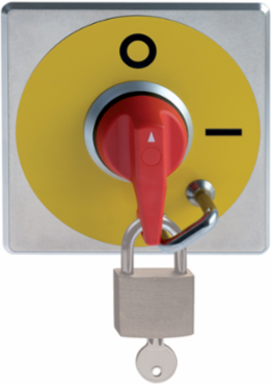

NHS Main Switch 40A, IP67/IP69K, 48mm Width, 29mm Height, 650g Gross Weight
Features
- for application in food producing machinery
Documentation & Downloads
Specifications
Key Specifications
| Length | 48 mm |
|---|---|
| Height | 29 mm |
| Width | 48 mm |
|---|
Electrical data
| Thermal test current | 40 A |
|---|---|
| Switching capacity, AC-3 | 11,000 W |
| Number of main contacts | 3 |
| Rated operating voltage | 690 VAC |
|---|---|
| Switching capacity, AC-23 | 15,000 W |
Mechanical data - Dimensions
| Width | 48 mm |
|---|---|
| Mounting depth | 85 mm |
| Diameter of the front ring | 44.5 mm |
| Diameter of the knob | 39 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Height | 29 mm |
|---|---|

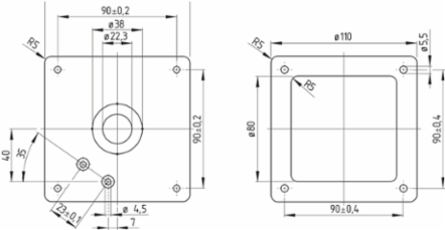

| Length x Width x Height | Grid dimensions: 110 mm x 110 mm | Dimensions of the mounting plate: 110 mm x 110 mm |
| Length of the handle | 52 mm |
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
General data - Features
| Latching | Yes |
|---|
| Fully insulated | Yes |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | Strengthening plate |
| Sealing type | Membrane | Lip gaskets |
| Material of the bracket | Stainless steel (V4A) |
| Material of the mounting plate | Stainless steel (V4A) |
| Colour of the operating element | Red |
| Colour of the bracket | Silver |
| Colour of the mounting plate | Silver |
| Colour of the bellows | Black |
| Versions | Main switch 40A |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the identification label | Stainless steel (V4A) |
| Material of the operators | ABS |
| Material of the front ring | ABS, chrome-plated |
| Colour of the identification plate | Yellow |
| Colour of the front ring | Silver |
| Colour of the handle | Red |
| Gross weight | 650 g |
Ambient conditions
| Degree of protection | IP67 | IP69K |
|---|---|
| Resistance to vibrations | 10 - 150 Hz (0.5 mm / 5 g) |
| Ambient temperature | +0 ... +80 °C |
|---|---|
| Restistance to shock | 50 g |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 16 mm², rigid | 10 mm², flexible |
| Cable section, minimum | 4 mm², rigid | 2.5 mm², flexible |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Unlocking | Rotating unlatcher |
|---|---|
| switching angle | 90 ° |
| Tightening torque of the screw | 0.6 Nm |
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Mounting | mounting flange |
| Mounting position main contacts | 0° |
Approvals - Standards
| Certificates | BG | IPA |
|---|
