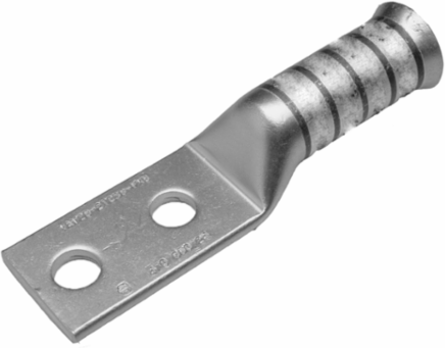

Burndy YA302NFXB Cu Compression Belled End Terminal, 250 kcmil, 1/2 Inch Stud, 2 Holes
- MPN: YA302NFXB
- UPC: 781810054529
- PPN: BUR-50254H
CAD
$109.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Compression Belled End Terminal, Without Inspection Window, 250 Flex Kcmil, 1/2" stud, 2 Hole
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-3/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 147 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 1.20 in
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.64 in
Dimension - B Length inch2.16 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch5.80 in
Dimension - Outside Diameter inch0.81 in
Dimension - Strip Length inch2-1/4
Dimension - Thread Size1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Flex G Size Range
- 250 kcmil
- Conductor - Copper Flex H Size Range
- 250 kcmil
- Conductor - Material
- Copper
Conductor - Copper Flex G Size250 kcmil
Conductor - Copper Flex H Size250 kcmil
Conductor - Copper Str Size250 kcmil
General
- Color Code
- Yellow
- Die Index
- 16
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810054529
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100545299
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
