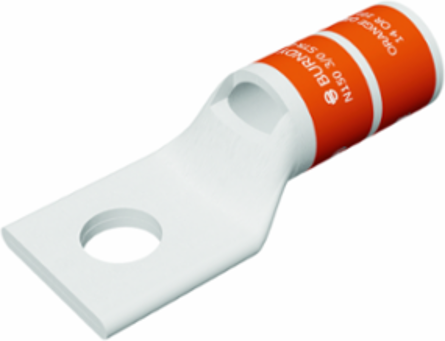

HYLUG™ Copper Terminal Connector, 650 kcmil, 5/8 Inch Stud, 1-3/8 Inch B Length

Documentation & Downloads

Hubbell YA37L1 HYLUG™ Copper Terminal Connector, 650 kcmil, 5/8 Inch Stud, 1-3/8 Inch B Length

MPN: YA37L1
UPC: 781810142837
PPN: BUR-510448

CAD

$96.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Copper HYLUGTM ,Single hole /W/ insp window,650 kcmil,3/4" stud,23 index,Orange,Tin Plated

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction: 1-3/8 in

Dimension - Bolt Hole Size inch: 0.91 in

Dimension - D inch: 1.52 in

Dimension - L Length Overall mm: 96 mm

Dimension - N inch: 0.75 in

Dimension - Pad Width inch: 1.80 in

Dimension - Stud Size fraction: 5/8

Dimension - Z inch: 0.77 in

Dimension - B Length inch1.39 in

Dimension - Bolt Size fraction3/4

Dimension - Hole Size mm21 mm

Dimension - Length Overall inch3.76 in

Dimension - Outside Diameter inch1.23 in

Dimension - Strip Length inch1-15/16

Dimension - Stud Size inch5/8

Physical Attribute - Tongue AngleStraight

Certifications and Compliance

Certification - CSA Approved: Yes

Certification - UL Recognized: No

Industry Standard(s): UL467

Standards - RoHS Compliance Status: CM

Certification - ETLNo

Certification - cULusNo

Standards - Industry Standards MetUL467

UL ListedYes

Conductor Related

Conductor - Copper DLO Size Range: N/A

Conductor - Copper Str Size Range: 650 kcmil

Conductor - Copper Str Size650 kcmil

Conductor - MaterialCopper

General

Color Code: Orange

Die Index: 23

Material: Copper

Plated: Y

Trade Name: HYLUG™

UPC: 781810142837

Connector TypeTerminal

Feature - Barrel TypeStandard

Physical Attribute - Number of Holes1

Plating TypeTin - Electro Plated

TypeStandard Barrel, Tin Plated

Electrical Ratings

Rating - KVA: 35 kV

Voltage - Maximum: 35000

Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity: 20
