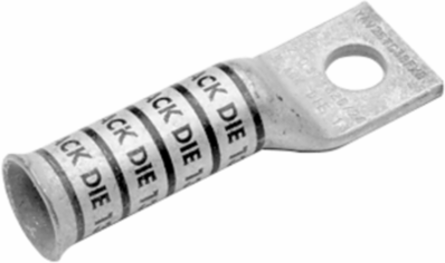

Burndy YA40LENT12FX HYLUGTM Non-insulated Terminal Tin Plated 3.43 Inch Length, 1/2 Inch Stud Size, 35 kV Rating
- MPN: YA40LENT12FX
- UPC: 781810649091
- PPN: BUR-50025225
CAD
$102.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
646FLEX 1/2STUD NARROW
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.42 in
- Dimension - Length Overall inch
- 3.43 in
- Dimension - Strip Length inch
- 1-5/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - L Length Overall mm87 mm
Dimension - Pad Width inch1.35 in
Dimension - Stud Size inch1/2
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Flex G Size
- 650 Kcmil
- Conductor - Copper Flex I Size
- 650 Kcmil
- Conductor - Copper Flex M Size
- 650 Kcmil
- Conductor - Material
- Copper
Conductor - Copper Flex H Size650 Kcmil
Conductor - Copper Flex K Size650 Kcmil
Conductor - CopperWeld Str Size646 Weld 1600/24
General
- Color Code
- Black
- Die Index
- 24
- Feature - Barrel Type
- Standard
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810649091
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Plating TypeTin
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818106490911
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 12
