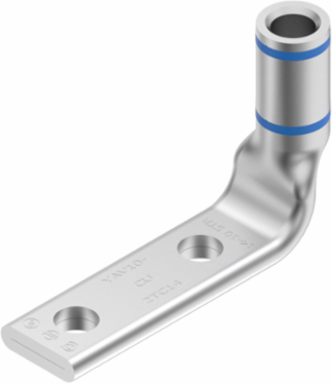

Burndy YAV102TC1090 HYLUG Terminal Connector, 2 Holes, 0.21 Inch Hole Size, Tin Plated Copper

MPN: YAV102TC1090
UPC: 781810022122
PPN: BUR-518422

$16.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu terminal, 2 Holes/W/insp W, #14-#10 STR,#12-#10 SOL, #10" stud, Tin - Electro Plated.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	3/8 in
Dimension - Bolt Hole Size inch	0.20 in
Dimension - Height inch	0.64 in
Dimension - Hole Size mm	5 mm
Dimension - Length Overall inch	1.33 in
Dimension - Outside Diameter inch	0.21 in
Dimension - Strip Length inch	7/16
Dimension - Z inch	0.26 in

Dimension - B Length inch	0.38 in
Dimension - D inch	1.13 in
Dimension - Hole Size inch	0.21 in
Dimension - L Length Overall mm	34 mm
Dimension - N inch	0.25 in
Dimension - Pad Width inch	0.36 in
Dimension - Stud Size inch	#10
Physical Attribute - Tongue Angle	90 Degree

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Solid Size Range	12 AWG-10 AWG
Conductor - Copper Str Size Range	14 AWG-10 AWG

Conductor - Copper Solid Size	12 AWG;11 AWG;10 AWG
Conductor - Copper Str Size	14 AWG;12 AWG;10 AWG
Conductor - Material	Copper

General

Application	For Code Conductor
Feature - Barrel Style	Chamfered
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Temperature Rating	194
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100221222

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plated	Y
Sub Brand	TERMINALS, HYLUG
Trade Name	HYLUG™
UPC	781810022122
