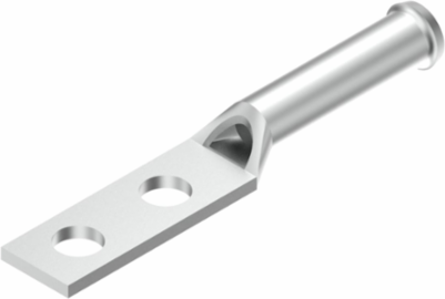

Burndy YAV252TC38FXB Copper Compression Terminal, Long Barrel, 1/0 AWG, 3/8 Inch Stud
- MPN: YAV252TC38FXB
- UPC: 781810065525
- PPN: BUR-518670
CAD
$29.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Two Hole Long barrel Cu Compression terminal with Belled End, Without Inspection Window , 1/0 Flex AWG, 3/8" stud
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 115 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.83 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.39 in
Dimension - D inch1.83 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch4.53 in
Dimension - Outside Diameter inch0.56 in
Dimension - Strip Length inch1-9/16
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 1/0 (275/#24) DLO
- Conductor - Copper Flex H Size
- 1/0 AWG
- Conductor - Copper Flex K Size
- 1/0 AWG
- Conductor - Copper Flex M Size Range
- 1/0 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size1/0 AWG
Conductor - Copper Flex I Size1/0 AWG
Conductor - Copper Flex M Size1/0 AWG
Conductor - Copper Str Size1/0
General
- Color Code
- Pink
- Die Index
- 12
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810065525
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100655255
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
