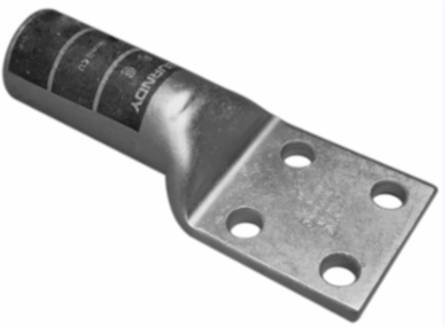

Burndy YA4864N HYLUGTM Long Barrel Terminal Connector, 9.38 Inch Length, 4 Holes, Copper
- MPN: YA4864N
- UPC: 781810080245
- PPN: BUR-510168
CAD
$1139.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BURNDY; HYLUG; YA; Features: Four Hole Copper compression, Long Barrel; For use on copper compression connections; RoHS Compatible
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 4-11/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - D inch | 3.02 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 238 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 3.46 in |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z inch | 0.64 in |
| Outside Diameter | 2.38 in |
| Dimension - B Length inch | 4.69 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - F Width Center to Center inch | 1.75 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 9.38 in |
| Dimension - Outside Diameter inch | 2.38 in |
| Dimension - Strip Length inch | 4-3/4 |
| Dimension - Thread Size | 1/2 |
| Length | 9.38 in |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | No |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Size Range | 2500 kcmil |
| Conductor - Copper Str Size | 2500 kcmil |
|---|---|
| Conductor - Material | Copper |
General
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 4 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810080245 |
| Feature - Barrel Style | Chamfered |
|---|---|
| Material | Copper |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100802455 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 3 |
|---|
