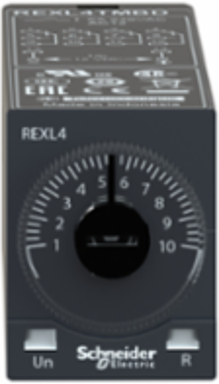

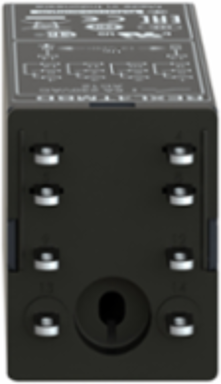

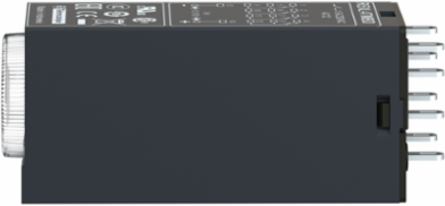

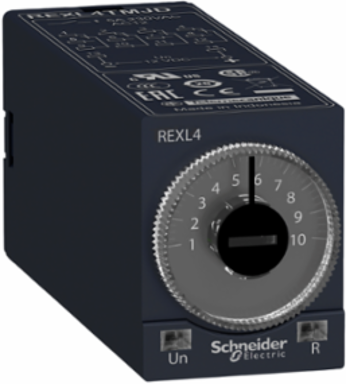

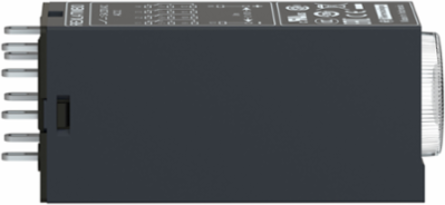

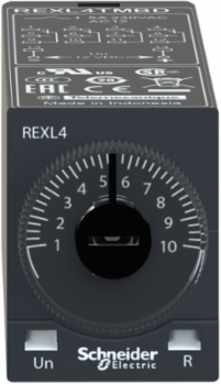

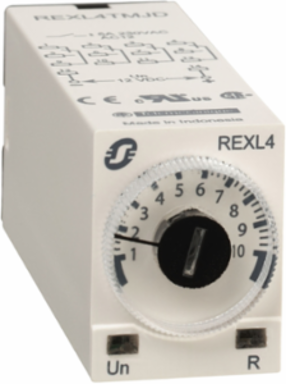

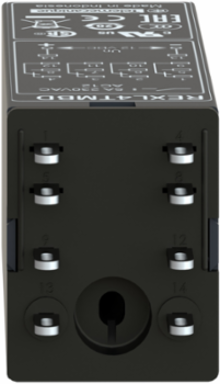

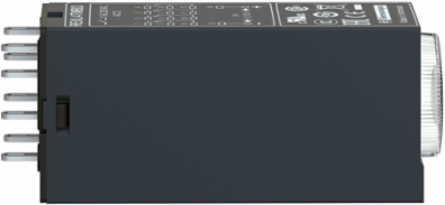

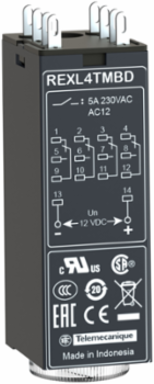

Schneider Electric REXL4TMBD Harmony Timer Relay 5A 24V DC 0.1-100h Delay

MPN: REXL4TMBD
PPN: SCH-REXL4TMBD

$78.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V DC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

Complementary Attributes

Line Rated Current	AC, 5 A
Minimum Switching Current	100 mA

Maximum Switching Capacity	4 x 5 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	without test button, without test button
Immunity To Voltage Dips	>= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-1130 % / 10 ms IEC 61000-4-1160 % / 100 ms IEC 61000-4-11

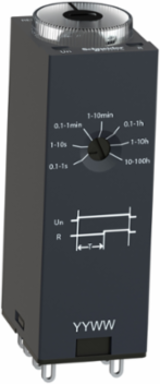

Time Delay Range	10...100 h, 6...60 s, 6...60 min, 1...10 s, 1...10 h, 1...10 min, 0.1...1 s
Voltage Drift	+/- 0.2 %/V, +/- 0.2 %/V
Certificate Agency	UL, cUL
Carbon Footprint Of The Distribution Phase [A4]	0.0068381268, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0006742095, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	41 kg CO2 eq., 41.2026666667
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Material	cadmium free
Creepage Distance	4 kV/3 IEC 60664-1
Fixing Mode	plug-in (socket)
Functionality	on-delay timing
Immunity To Radioelectric Fields	10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Mechanical Durability	10000000 cycles
Power Consumption In W	1.2 W
Product Or Component Type	miniature timing relay
Reset Time	250 ms after time delay, on de-energisation50 ms during time delay, on de-energisation
Resistance To Electrostatic Discharge	6 kV in contact IEC 61000-4-2 level 38 kV in air IEC 61000-4-2 level 3
Returnability	Yes
Shape Of Pin	flat
Sustainable Packaging	Yes
Temporary Permissible Current	10 A < 10 s
Vibration Resistance	0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Supply Voltage Num 3	24 V DC
Database Version	2017-03
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	84.096
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27

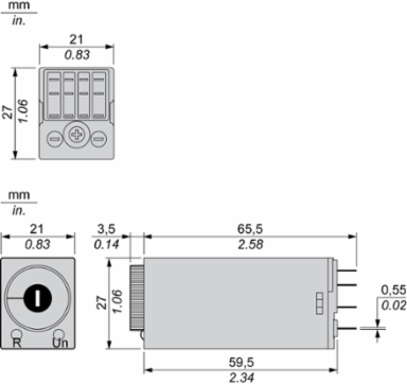

Width Nominal	21 mm
[Us] Rated Supply Voltage	24 V DC
Disturbance Radiated/Conducted	class B EN 55022 (EN 55011 group 1)
Package Weight(Lbs)	53.000 g
Warranty (In Months)	18
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	149.4
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	104.64

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	2 kV 1 mA/1 minute 50 Hz IEC 60601-1, 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Repeat Accuracy	+/- 0.5 %, +/- 0.5 %
Time Delay Type	- - relay, A, power on-delay
Contacts Composition	4 C/O
[Ui] Rated Insulation Voltage	250 V IEC 255 Group C, 250 V VDE 0010
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0067320456
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.6 kg CO2 eq., 0.6017900785
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Component Name	REXL
Contacts Type And Composition	4 C/O
Electrical Durability	100000 cycles 250 V AC resistive
Function Available	A- Power on-delay relay-4 C/O
Immunity To Microbreaks	5 ms
Local Signalling	1 LED (red) for output in operation1 LED (yellow) for power ON
Number Of Functions	1
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Timer Relays
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3 level 3
Resistance To Fast Transients	2 kV IEC 61000-4-4 level 3
Setting Accuracy Of Time Delay	10 % at full scale 25 °C IEC 61812-1
Software Version	EIME v5.6
Temperature Drift	0.05 %/°C
Total Lifecycle Carbon Footprint	42 kg CO2 eq.
Voltage Range	0.9...1.1 Us
Pep Code	ENVPEP1310019EN
Pep Verification Date	2017-06-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	28
[Uc] Control Circuit Voltage	24 V
Connections - Terminals	screw connectors
Nbr. Of Units In Pkg.	1
Take-back	No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	467.68
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	104.64
Customs Code	8536410045

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C, -20-60 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	41.8187011271
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1310019EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1310019EN
Ip Degree Of Protection	IP50 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % without condensation IEC 60068-2-6
Pep Verification Date	2017-06-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
