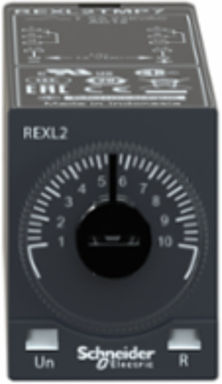

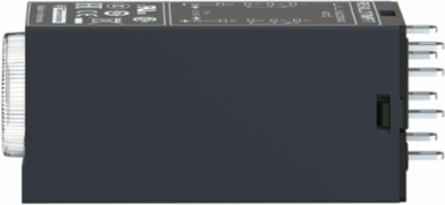

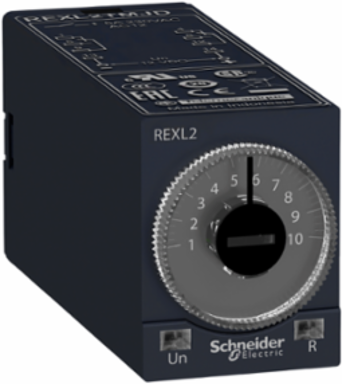

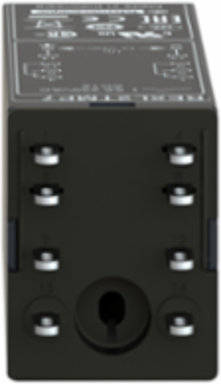

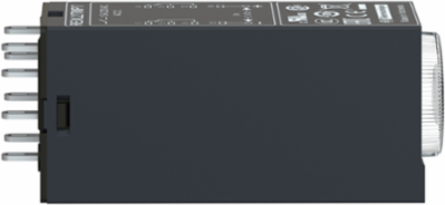

Schneider Electric REXL2TMB7 Harmony ON-Delay Timer Relay 5A, 2CO, 0.1s-100h, 24V AC
- MPN: REXL2TMB7
- PPN: SCH-REXL2TMB7
CAD
$69.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours. It provides function A and it uses plug-in mounting. This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Discrete Output Type
- relay
- Product Or Component Type
- single function relay
- Fixing Mode
- plug-in (socket)
- Time Delay Range
- 10...100 h || 6...60 min || 0.1...1 s || 1...10 h || 1...10 min || 6...60 s || 1...10 s
Range Of ProductHarmony Timer Relays
Component NameREXL
Contacts Type And Composition2 C/O
Time Delay Typepower on-delay
Complementary
- Setting Accuracy Of Time Delay
- 10 % at full scale 25 °C IEC 61812-1
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Contacts Material
- cadmium free
- Voltage Range
- 0.85...1.15 Us
- Net Weight
- 0.05 kg
- Reset Time
- 250 ms after time delay, on de-energisation || 50 ms during time delay, on de-energisation
- [Us] Rated Supply Voltage
- 24 V AC 50/60 Hz
- Surge Withstand
- 2 kV IEC 61000-4-5 level 3
- Minimum Switching Current
- 100 mA
- Local Signalling
- output in operation 1 LED red) || power ON 1 LED yellow)
- Maximum Switching Capacity
- 4 x 5 A
[In] Rated Current5 A AC
Repeat Accuracy+/- 0.5 %
Output Overvoltage Protection2 J
Electrical Durability100000 cycles 250 V AC resistive
Voltage Drift+/- 0.2 %/V
Power Consumption In Va1.7 VA
Temperature Drift0.05 %/°C
[Ui] Rated Insulation Voltage250 V IEC 255 Group C || 250 V VDE 0010
Temporary Permissible Current10 A < 10 s
Mechanical Durability10000000 cycles
Environment
- Product Certifications
- UL || cUL
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3 level 3
- Disturbance Radiated/Conducted
- class B EN 55022 (EN 55011 group 1)
- Immunity To Voltage Dips
- >= 95 % / 1 s IEC 61000-4-11 || 30 % / 10 ms IEC 61000-4-11 || 60 % / 100 ms IEC 61000-4-11
- Ip Degree Of Protection
- IP50 IEC 60529
- Relative Humidity
- 95-95 % without condensation IEC 60068-2-6
- Immunity To Radioelectric Fields
- 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 level 3
Ambient Air Temperature For Operation-20-60 °C
StandardsEN 50081-2 || IEC 61000-6-2 || IEC 60601-2 || IEC 61812-1 || 93/68/EEC || 73/23/EEC || 89/336/EEC || IEC 60601-1
Immunity To Microbreaks5 ms
Vibration Resistance0.35 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Resistance To Electrostatic Discharge6 kV in contact IEC 61000-4-2 level 3 || 8 kV in air IEC 61000-4-2 level 3
Dielectric Strength2 kV 1 mA/1 minute 50 Hz IEC 60601-1 || 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310019EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
