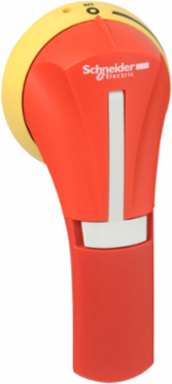

Schneider Electric GS2AH440 TeSys GS External Rotary Handle, 30-400A, NEMA 4/4X, Red Handle
- MPN: GS2AH440
- PPN: SCH-GS2AH440
- UNSPSC: 39122233
CAD
$146.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately).
Features
- Featuring a striking red handle set against a bright yellow front bezel, this operator provides instant visual identification for personnel across the factory floor. Designed specifically for critical safety interventions, its high-contrast color scheme ensures compliance with international machine safety standards when configured as an emergency main disconnect switch.
- This rotary operator incorporates a robust, built-in padlockable design that accepts up to three individual padlocks in the "OFF" position. This allows your team to enforce strict OSHA Lockout/Tagout (LOTO) safety protocols, ensuring the underlying fuse mechanism or switch cannot be accidentally re-energized while multiple technicians are actively working down-line.
- Designed for ultimate component standardization, this shaft-operated handle is fully compatible with Schneider Electric TeSys GS fuse disconnect switches ranging from 30A up to 400A. This cross-compatibility simplifies your facility's spare parts inventory, speeds up panel design configurations, and ensures a uniform, professional look across all your motor control centers and custom automation panels.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Tunisia |
|---|
Complementary Attributes
| Line Rated Current | 30 A, 60 A, 100 A, 200 A, 400 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA, UL |
| Local Publishable Date | 2026-07-07 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | GS2 handle |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Sustainable Packaging | No |
| Handle Color | red |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | GS2AH |
| Marking | O-I |
| Product Or Component Type | rotary handle |
| Range Of Product | TeSys |
| Rotary Handle Padlocking | with |
| Type Of Operating Handle | external frontal |
| Handle Front Plate Color | yellow |
| Customs Code | 3926909989 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Nema Degree Of Protection | NEMA 4X |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | rotary handle |
|---|
| Range Of Product | TeSys |
|---|
ETIM
| ETIM 8 | EC000229 |
|---|---|
| ETIM 10 | EC000229 |
| ETIM 9 | EC000229 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
