Schneider Electric XB5RMA04 Harmony XB5 Wireless Push Button Pack 22mm 24...240V AC/DC
Schneider Electric XB5RMA04 Harmony XB5 Wireless Push Button Pack 22mm 24...240V AC/DC
- MPN: XB5RMA04
- PPN: SCH-XB5RMA04
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$387.48/ EA
Description

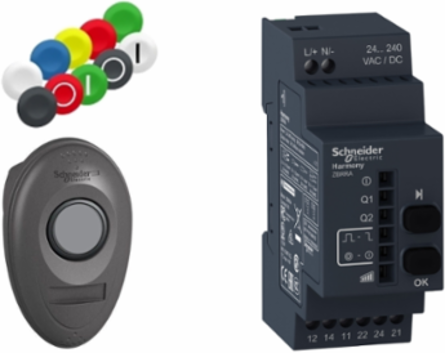

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar, in handy box and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 250g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.
Specifications
Environment
- Product Certifications
- CCC || CSA || C-Tick || GOST || UL
- Marking
- CE
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508
Radio AgreementANATEL || SRRC || ICASA || FCC || ARIB T66 || RSS
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP101106EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1103010EN
Complementary
- [Us] Rated Supply Voltage
- 24...240 V
- Control Type
- wireless and batteryless push-button handy box assembled on fixing collar
- Status Led
- 1 LED green power ON || 2 LEDs green relay ON || 2 LEDs green function mode || 1 LED green and yellow reception signal
- Communication Port Protocol
- Zigbee IEEE 802.15.4
- Max Power Consumption In W
- 1 mW
- Type Of Receiver
- programmable receiver 2 relays)
- Customizable
- no
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
Modulation TechniqueO-QPSK
Kit Composition1 22 mm || 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 push-button head 22 mm || 1 handy box
Antenna Gain0 dBi
Number Of Channels1
Compatibility CodeXB5R
Bandwidth5-5 MHz
Specifications
- Antenna Type
- omnidirectional
- Product Or Component Type
- wireless and batteryless package
- Level Or Class
- 5M00G7W
- Transmission Frequency
- 2405 MHz transmitter || 2405 MHz receiver
Range Of ProductHarmony XB5R
Head Materialplastic
Device Short NameXB5R
