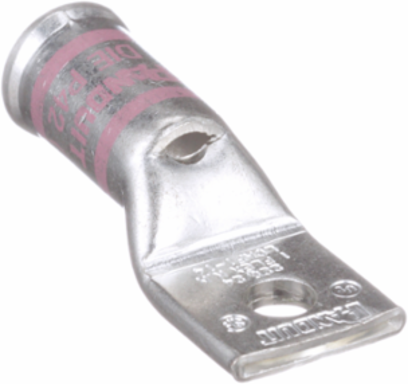

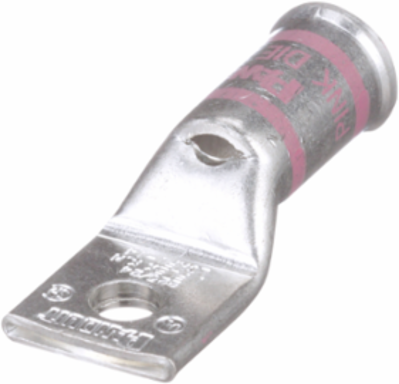

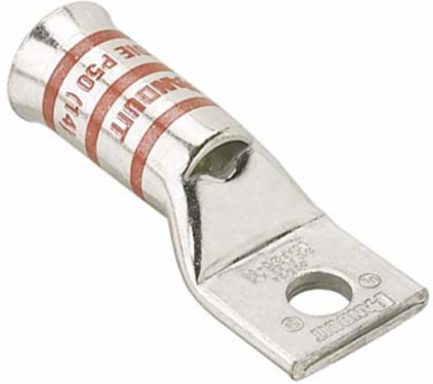

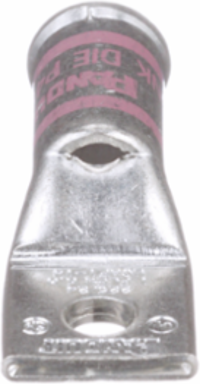

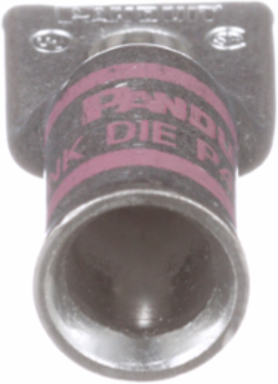

Panduit LCAF1-14-X Pan-Lug™ LCAF1-14-X Copper Compression Connectors - Lugs
- MPN: LCAF1-14-X
- UPC: 074983557493
- PPN: PAN-LCAF1-14-X
- UNSPSC: 39121405
CAD
$8.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
One-hole, flared barrel, #1 AWG wire, 1/4 stud hole.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Barrel Length (mm) | 23.9 |
| Tongue Width (mm) | 19.3 |
| Stud Hole Size (In.) | 1/4 |
| Tongue Type | Standard |
| Product Type | Compression Lug |
| Barrel Length (In.) | 0.94 |
| Base Material | Copper |
| Sub Brand | Pan-Lug™ |
| CSA Temperature Rating (°C) | 90 |
| Overall Length (mm) | 49.5 |
| Tongue Thickness (In.) | 0.12 |
| Color Code | Pink |
| UL Temperature Rating (°C) | 90 |
| Barrel Entry | Flared |
| Copper Conductor Size | 1 AWG |
| Class K Copper Flex Conductor Size | 1 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Note | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Spacing (mm) | 0 |
| Finish/Coating | Tin-Plated |
| Panduit Die Index Number | P42 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 1 |
| Tongue Width (In.) | 0.76 |
| Stud Hole Size (mm) | 6.4 |
| Wire Strip Length (mm) | 25.4 |
| Tongue Angle | Straight |
| Overall Length (In.) | 1.95 |
| Barrel Type | Standard |
| Tongue Thickness (mm) | 3 |
| Number of Stud Holes | 1 |
| Inspection Window | Yes |
| Class M Copper Flex Conductor Size | 1 AWG |
| DLO Copper Flex Conductor Size | 1 AWG |
Packaging Details
| UPC | 07498355749 |
|---|---|
| Standard Package Volume Ft3 | 0.0184 |
| Std Package Height In | 3.4 |
| Std Package Length In | 3.9 |
| Std Package Width In | 2.4 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 10 |
| Standard Carton Weight Pounds | 0.0000 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 1.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983557493 |
|---|---|
| Standard Package Weight Pounds | 0.6450 |
| Std Package Height MM | 86.36 |
| Std Package Length MM | 99.06 |
| Std Package Width MM | 60.96 |
| UOM EA PK | PK |
| Standard Carton Volume Ft3 | 0.0000 |
| Std Ctn Qty | 0 |
| EAN | 00074983557493 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
