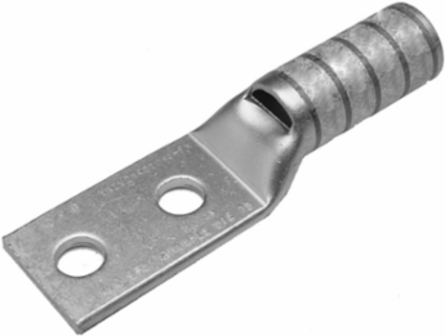

Burndy YAZV102TC14E2 HYLUGTM Long Length Barrel Compression Connector, 2 Hole, 35kV, 14-10 AWG

MPN: YAZV102TC14E2
UPC: 781810196908
PPN: BUR-25015921

$16.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Tubing Hylug (2 Hole Code), 2 Holes with Inspection Window, #14- #10 AWG Code, 600V-35kV, 1/4" stud, Long, Compression, 0.27 in BCD.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	11/16 in
Dimension - Bolt Hole Size inch	0.27 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	2.28 in
Dimension - Outside Diameter inch	0.21 in
Dimension - Strip Length inch	3/4
Dimension - Z inch	0.34 in

Dimension - B Length inch	0.69 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	58 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.41 in
Dimension - Stud Size inch	1/4
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Size	14 AWG;12 AWG;10 AWG

Conductor - Material	Copper

General

Application	For Code Conductor
Feature - Barrel Style	Skived
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810196908

Connector Type	Terminal
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	2
Plated	Y
Sub Brand	HYLUG
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818101969088
