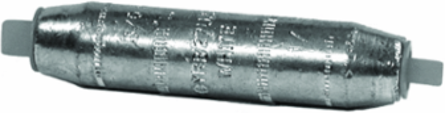

Burndy YRB39U34 Aluminum Reducer Butt Splice, 5.57 Inch Long, 700/750 kcmil to 500 kcmil, Tin Plated
- MPN: YRB39U34
- UPC: 781810740217
- PPN: BUR-252380
CAD
$199.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

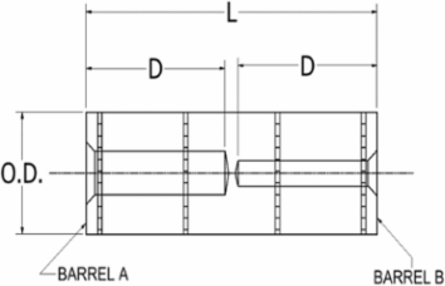

Aluminum Reducer Butt Splice, Barrel A: 700/750 kcmil, Barrel B: 500 kcmil, 5.57" Long, Tin Plated.
Features
- Features: HYREDUCER Type YRB Reducer Butt Splice Is Designed To Splice Two Different Conductor Sizes And Is UL Listed For Aluminum To Copper And Aluminum To Aluminum Applications, Constant Outside Diameters, Electro Tin-Plated: Minimizes Installation Dies And Provides A Smooth Profile For Easy Taping, Provides Durable Long Lasting Corrosion Resistance, Factory Prefilled With BURNDYs PENETROX Oxide Inhibiting Compound: Contains Homogeneously Suspended Conductive Metallic Particles Which Penetrate Oxides Between Conductor Strands And Forms An Air Tight Connection, Solid Center Barrier: Provides Center Stop For Correct Cable Insertion And Aids The Thorough Penetration Of PENETROX Oxide Inhibiting Compound Between Conductor Strands, Connectors Are Clearly Marked With Catalog Number, Wire Size, And Color-Coded Die Index: Provides Clear, Easy To Use Information To Lower Installed Costs, Each Barrel End Has A Plastic End Cap: Keeps The Connector Barrels Free Of Foreign Materials, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750 Tool, U39ART-2 Die, (4), Y46 Tool, U39ART-2 Die With PUADP-1 Adapter, (4), Conductor Type: Run: Commercial Stranded Aluminum, Tap: Commercial Stranded Aluminum, Commercial Stranded Copper, Die Index: 936 Element A, Color Code: Yellow, Wire Strip Length: 2-7/8 IN
Documentation & Downloads
Specifications
Additional
- Voltage - Maximum
- 35000 V
- Temperature Rating
- 194 F
- Conductor - AL Str Size B Range
- 500 kcmil
- Conductor - Copper Str Size B
- 500 kcmil
- Outside Diameter
- 1.46 in
- Wire Strip Length
- 2-5/16 in
- Material
- Aluminum
- Certification - UL Listed
- Yes
- Color Code
- Yellow
- Connector Type
- Reducer
Rating - KVA35 kV
Conductor - AL Str Size A Range700 kcmil-750 kcmil
Conductor - Copper Str Size A Range700 kcmil-750 kcmil
Length Overall5.57 in
B Length2.25 in
Number of Crimps Required4
PlatingTin - Electro Plated
Industry Standard(s)UL468A-468B
TypeYRB, Compression
Sub BrandHYREDUCER
