Panduit MC37X50IG2 Panduct® MC37X50IG2 Base/Cover
- MPN: MC37X50IG2
- UPC: 074983742967
- PPN: PAN-MC37X50IG2
- UNSPSC: 39131712
CAD
$28.77
/ Mtr
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

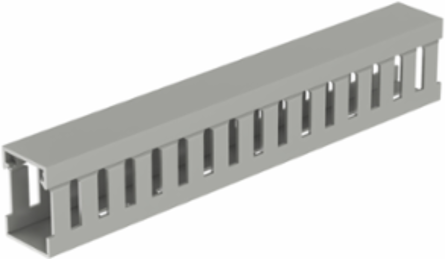

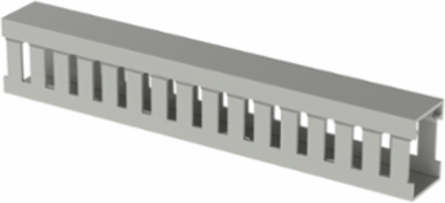

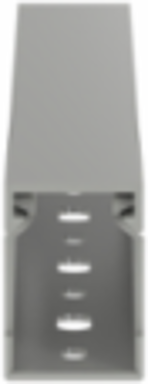

The MC37X50IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 37.1 mm x 47.8 mm (1.46" x 1.88"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 20 Meters (10 sticks each) - Bases & Covers per package.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Color | International Gray |
| Overall Length (m) | 2 |
| Overall Length (ft.) | 6.6 |
| Overall Width (mm) | 37.1 |
| Includes | (1) Cover |
| Mount Method | DIN Standard Mounting Holes |
| Overall Height (mm) | 47.8 |
| Sub Brand | Panduct® |
| Slot Width (In.) | 0.2 |
| Material Properties | Lead-Free |
| Nominal Width (mm) | 37 |
| Any Reason Not to Sell | N |
|---|---|
| Measurement System | Metric |
| Flammability Rating | UL 94 V-0 |
| Slot Width (mm) | 5 |
| Overall Width (In.) | 1.46 |
| Overall Height (In.) | 1.88 |
| Product Type | Wiring Duct Base with Cover |
| Cover Part Number | C37WH2 (included) |
| Wiring Duct Type | MC |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Material | PVC |
| Nominal Height (mm) | 50 |
Packaging Details
| UPC | 07498374296 |
|---|---|
| Standard Package Volume Ft3 | 0.1160 |
| Std Package Height In | .5 |
| Std Package Length In | 78 |
| Std Package Width In | 4.7 |
| Std. Pkg. UOM | Meters |
| Std. Pkg. Qty. | 2 |
| Standard Carton Volume Ft3 | 1.1596 |
| Std Carton Height In | 2.7 |
| Std Carton Length In | 79.8 |
| Std Carton Width In | 9.3 |
| Std Ctn Qty | 20 |
| EAN | 00074983742967 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 1,040 |
| Pallet Weight | 918.6320 |
| GTIN Package | 00074983742967 |
|---|---|
| Standard Package Weight Pounds | 1.7666 |
| Std Package Height MM | 12.7 |
| Std Package Length MM | 1981.2 |
| Std Package Width MM | 119.38 |
| UOM EA PK | PK |
| GTIN Carton | 50074983742962 |
| Standard Carton Weight Pounds | 17.6660 |
| Std Carton Height MM | 68.58 |
| Std Carton Length MM | 2026.92 |
| Std Carton Width MM | 236.22 |
| Min. Order UOM | Meters |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 20.0000 |
| Pallet Volume | 60.298875 |
| RoHS Compliant | Compliant |
