Panduit F3X4LG6 Panduct® F3X4LG6 Base Wiring Duct
Panduit F3X4LG6 Panduct® F3X4LG6 Base Wiring Duct
- MPN: F3X4LG6
- UPC: 074983375813
- PPN: PAN-F3X4LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$9.07/ FT
Description

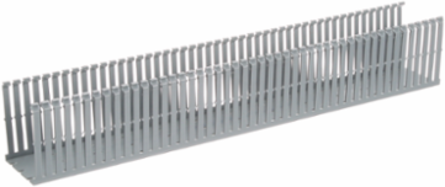

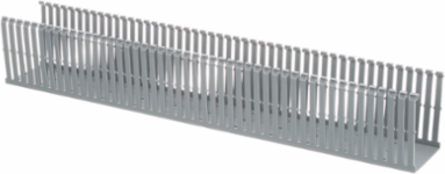

The F3X4LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3" x 4" (76.2 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Overall Height (In.)
- 4.1
- Application
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- Slot Width (In.)
- 0.2
- Overall Width (In.)
- 3.25
- Overall Length (m)
- 1.83
- Overall Height (mm)
- 104.1
- Flammability Rating
- UL94V-0
- Product Type
- Base Wiring Duct
- Cover Part Number
- C3LG6
- Slot Width (mm)
- 5
- Nominal Width (In.)
- 3
Any Reason Not to SellN
Measurement SystemImperial
Wiring Duct TypeF
Includes(1) Base
MaterialPVC
Overall Width (mm)82.6
Overall Length (ft.)6
Mount MethodMounting Holes
ColorLight Gray
Sub BrandPanduct®
Wiring Duct StyleNarrow Slot Wiring Duct
Material PropertiesLead-Free
Nominal Height (In.)4
Packaging Details
- UPC
- 07498337581
- Standard Package Volume Ft3
- 0.3523
- Std Package Height In
- 4
- Std Package Length In
- 72
- Std Package Width In
- 3
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 3.5227
- Std Carton Height In
- 4.5
- Std Carton Length In
- 72.9
- Std Carton Width In
- 18.6
- Std Ctn Qty
- 60
- EAN
- 00074983375813
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 840
- Pallet Weight
- 459.9000
GTIN Package00074983375813
Standard Package Weight Pounds3.2850
Std Package Height MM101.6
Std Package Length MM1828.8
Std Package Width MM76.2
UOM EA PKPK
GTIN Carton50074983375818
Standard Carton Weight Pounds32.8500
Std Carton Height MM114.3
Std Carton Length MM1851.66
Std Carton Width MM472.44
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty60.0000
Pallet Volume49.317397
RoHS CompliantCompliant
