Panduit F1.5X3LG6 Panduct® F1.5X3LG6 Base Wiring Duct
Panduit F1.5X3LG6 Panduct® F1.5X3LG6 Base Wiring Duct
- MPN: F1.5X3LG6
- UPC: 074983375370
- PPN: PAN-F1.5X3LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.13/ FT
Description

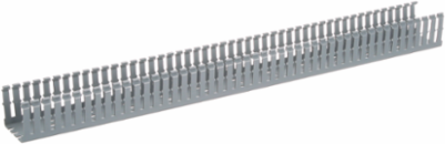

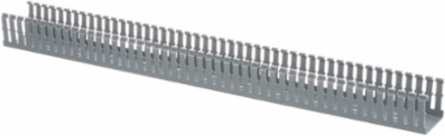

The F1.5X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1.5" x 3" (38.1 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Slot Width (mm)
- 5
- Overall Length (m)
- 1.83
- Includes
- (1) Base
- Application
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- Sub Brand
- Panduct®
- Overall Width (mm)
- 44.5
- Cover Part Number
- C1.5LG6
- Measurement System
- Imperial
- Flammability Rating
- UL94V-0
- Wiring Duct Type
- F
- Nominal Width (In.)
- 1.5
Any Reason Not to SellN
Wiring Duct StyleNarrow Slot Wiring Duct
ColorLight Gray
Overall Height (In.)3.12
Overall Length (ft.)6
Overall Width (In.)1.75
Mount MethodMounting Holes
Overall Height (mm)79.2
Slot Width (In.)0.2
MaterialPVC
Product TypeBase Wiring Duct
Material PropertiesLead-Free
Nominal Height (In.)3
Packaging Details
- UPC
- 07498337537
- Standard Package Volume Ft3
- 0.1489
- Std Package Height In
- 3
- Std Package Length In
- 72
- Std Package Width In
- 1.5
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 2.9786
- Std Carton Height In
- 6.4
- Std Carton Length In
- 72.4
- Std Carton Width In
- 10.3
- Std Ctn Qty
- 120
- EAN
- 00074983375370
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 1,800
- Pallet Weight
- 589.9500
GTIN Package00074983375370
Standard Package Weight Pounds1.9665
Std Package Height MM76.2
Std Package Length MM1828.8
Std Package Width MM38.1
UOM EA PKPK
GTIN Carton50074983375375
Standard Carton Weight Pounds39.3300
Std Carton Height MM162.56
Std Carton Length MM1838.96
Std Carton Width MM261.62
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty120.0000
Pallet Volume44.679013
RoHS CompliantCompliant
