Panduit F4X4LG6 Panduct® F4X4LG6 Base Wiring Duct
- MPN: F4X4LG6
- UPC: 074983375974
- PPN: PAN-F4X4LG6
- UNSPSC: 39131712
CAD
$9.77
/ FT
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

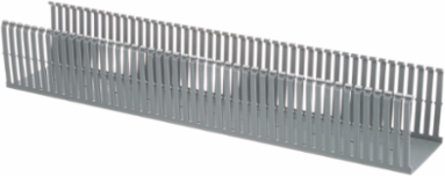

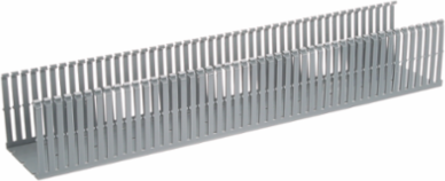

The F4X4LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 4" x 4" (101.6 mm x 101.6 mm) and 6' (1.83 m) long. Color Light Gray. Base only. Cover sold separately.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Measurement System
- Imperial
- Color
- Light Gray
- Overall Length (ft.)
- 6
- Slot Width (In.)
- 0.2
- Sub Brand
- Panduct®
- Product Type
- Base Wiring Duct
- Overall Height (mm)
- 104.1
- Overall Width (In.)
- 4.25
- Cover Part Number
- C4LG6
- Wiring Duct Type
- F
- Nominal Width (In.)
- 4
Any Reason Not to SellN
ApplicationNarrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Mount MethodMounting Holes
Flammability RatingUL 94 V-0
Overall Height (In.)4.1
MaterialPVC
Slot Width (mm)5
Includes(1) Base
Wiring Duct StyleNarrow Slot Wiring Duct
Overall Length (m)1.83
Overall Width (mm)108
Material PropertiesLead-Free
Nominal Height (In.)4
Packaging Details
- UPC
- 07498337597
- Standard Package Volume Ft3
- 0.5359
- Std Package Height In
- 4
- Std Package Length In
- 72
- Std Package Width In
- 4
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 5.3587
- Std Carton Height In
- 8.7
- Std Carton Length In
- 72.9
- Std Carton Width In
- 14.6
- Std Ctn Qty
- 60
- EAN
- 00074983375974
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 720
- Pallet Weight
- 473.4000
GTIN Package00074983375974
Standard Package Weight Pounds3.9450
Std Package Height MM101.6
Std Package Length MM1828.8
Std Package Width MM101.6
UOM EA PKPK
GTIN Carton50074983375979
Standard Carton Weight Pounds39.4500
Std Carton Height MM220.98
Std Carton Length MM1851.66
Std Carton Width MM370.84
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty60.0000
Pallet Volume64.303875
RoHS CompliantCompliant
