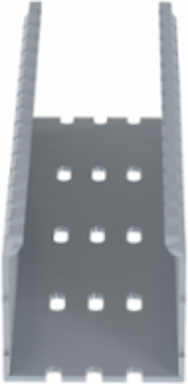

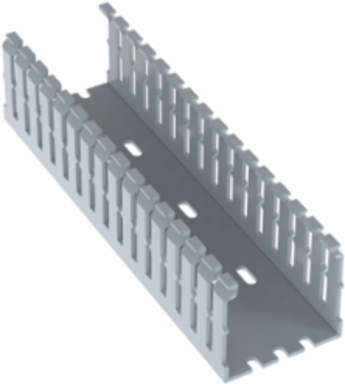

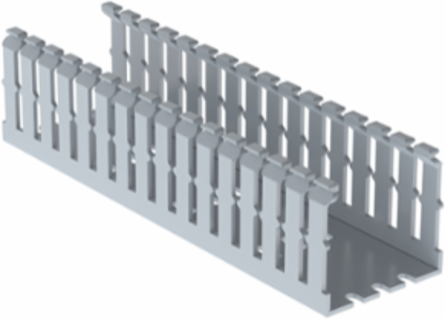

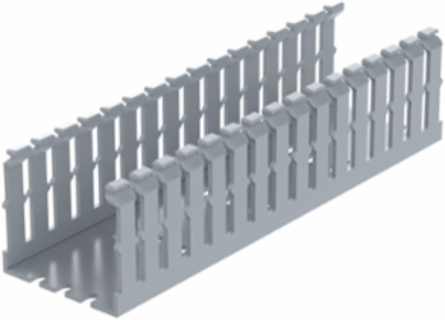

Panduit F2X2LG6 Panduct® F2X2LG6 Base Wiring Duct
Panduit F2X2LG6 Panduct® F2X2LG6 Base Wiring Duct
- MPN: F2X2LG6
- UPC: 074983375530
- PPN: PAN-F2X2LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.82/ FT
Description
The F2X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 2" x 2" (50.8 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Packaging Details
- UPC
- 07498337553
- Standard Package Volume Ft3
- 0.1319
- Std Package Height In
- 2
- Std Package Length In
- 72
- Std Package Width In
- 2
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 2.6371
- Std Carton Height In
- 4.7
- Std Carton Length In
- 72.9
- Std Carton Width In
- 13.3
- Std Ctn Qty
- 120
- EAN
- 00074983375530
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 2,520
- Pallet Weight
- 639.4500
GTIN Package00074983375530
Standard Package Weight Pounds1.5225
Std Package Height MM50.8
Std Package Length MM1828.8
Std Package Width MM50.8
UOM EA PKPK
GTIN Carton50074983375535
Standard Carton Weight Pounds30.4500
Std Carton Height MM119.38
Std Carton Length MM1851.66
Std Carton Width MM337.82
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty120.0000
Pallet Volume55.379953
RoHS CompliantCompliant
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Wiring Duct Style
- Narrow Slot Wiring Duct
- Product Type
- Base Wiring Duct
- Wiring Duct Type
- F
- Overall Width (mm)
- 57.2
- Mount Method
- Mounting Holes
- Overall Height (mm)
- 53.8
- Flammability Rating
- UL94V-0
- Measurement System
- Imperial
- Overall Width (In.)
- 2.25
- Slot Width (mm)
- 5
- Nominal Width (In.)
- 2
Any Reason Not to SellN
Overall Height (In.)2.12
Includes(1) Base
Sub BrandPanduct®
Slot Width (In.)0.2
Overall Length (ft.)6
MaterialPVC
ApplicationNarrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
ColorLight Gray
Overall Length (m)1.83
Cover Part NumberC2LG6
Material PropertiesLead-Free
Nominal Height (In.)2
