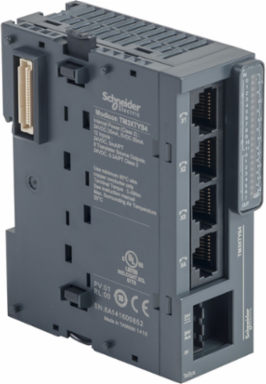

Schneider Electric TM3XTYS4 Modicon TM3 Parallel Interface Module, 12 Inputs, 8 Outputs, IP20, 0.115kg
- MPN: TM3XTYS4
- PPN: SCH-TM3XTYS4
- UNSPSC: 32151705
CAD
$180.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The parallel interface module provides 12 input channels, 8 transistor output channels. It is an interface module with a rated supply voltage of 24V DC, a current consumption of 1200A and an output voltage of 24V DC. There is an insulation between the RJ45 connectors and internal logic at 500V AC and non-insulated between RJ45 connectors. It is furnished with four RJ45 connector for connecting the motor starters and removable screw terminal for electrical connection. It is an IP20 rated product. Its dimensions are 30mm (Width) x 85mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Features
- Designed with a simple interlocking assembly mechanism
- Against overload, protection technology current limiter
- Automatic reset mode
- Multi LED (green) for input/output status per channel
- Wide range of operating temperature from 14°F to 131°F
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 85 mm |
| Weight | 335 g |
|---|
Complementary Attributes
| Maximum Load Current | 800 mA per channel starting mode 100 ms300 mA per channel normal mode |
|---|
| Us Rated Supply Voltage | 24 V DC external supply - 15...20 %) |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Current Consumption | 5 mA 5 V DC via bus connector at state on35 mA 5 V DC via bus connector at state off0 mA 24 V DC via bus connector at state on, 10 mA 24 V DC via bus connector at state off1200 mA 24 V DC external power supply at state on |
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Resistance To Fast Transients | 1 kV inputEN/IEC 61000-4-4, 1 kV outputEN/IEC 61000-4-4 |
| Vibration Resistance | 3 gn 8.4-150 Hz panel3.5 mm 5-8.4 Hz DIN rail3 gn 8.4-150 Hz DIN rail, 3.5 mm 5-8.4 Hz panel |
| Carbon Footprint Of The Distribution Phase A4 | 0.04988872964154122, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.0058833718780732834 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 119 kg CO2 eq., 118.77106644283556 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Electromagnetic Emission | radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011 |
| Local Signalling | 3 LEDs green per channel input status2 LEDs green per channel output status |
| Network Type | DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | TeSys U |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Reset | automatic reset |
| Resistance To Electrostatic Discharge | 8 kV in air EN/IEC 61000-4-24 kV on contact EN/IEC 61000-4-2 |
| Returnability | Yes |
| Software Version | v6.1 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 134 kg CO2 eq. |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Frequency Measurement | false |
| Function Block Affirm Pushbutton | false |
| Function Block Contactless Working Protection Installation | false |
| Function Block Operating Mode Selection | false |
| System Accessory | false |
| Data Source | extrapolated product |
| Width Nominal | 30 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| Functional Unit Description | To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 3 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Insulation | between the RJ45 connectors and internal logic 500 V AC, non-insulated between RJ45 connectors |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Response Time | < 10 ms turn-on input, < 10 ms turn-on input, < 10 ms turn-on input, < 10 ms turn-off input, < 10 ms turn-off input, < 10 ms turn-off input< 10 ms turn-on input, < 10 ms turn-on input, < 10 ms turn-on input, < 10 ms turn-off input |
| Certificate Agency | CE, cULus, UKCA, RCM, EAC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5341846124131088, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 14 kg CO2 eq., 14.434905846397077 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply4 RJ45 connectors for connecting the motor starters |
| Front Installation Possible | false |
| Marking | CE |
| Optical Interface Present | false |
| Product Or Component Type | parallel interface module |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-31 V/m 2 GHz...3 GHz EN/IEC 61000-4-3 |
| Resistance To Magnetic Fields | 30 A/m 50/60 Hz EN/IEC 61000-4-8 |
| Shock Resistance | 15 gn 11 ms |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Contactor Control Function Block | false |
| Function Block Access Control | false |
| Function Block Automatic Reset | false |
| Function Block Emergency Stop | false |
| Function Block Restart Blockage | false |
| Database Version | 2023-02 |
| Height Nominal | 90 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Function Block 2 Hand Switching | false |
| Performance Level According To En Iso 13849 1 | none |
| Radio Standard Wi Fi 802.11 | false |
| Supporting Protocol For Data Highway | false |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-35 °C vertical installation, -10-35 °C vertical installation, -10-55 °C horizontal installation, -10-55 °C horizontal installation-10-35 °C vertical installation, -10-35 °C vertical installation, -10-55 °C horizontal installation |
|---|---|
| Ip Degree Of Protection | with protective cover in place, IP20 |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1402009EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Relative Humidity | 10-95 %, without condensation in operation), 10-95 %, without condensation in storage) |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 133.79592900316536 |
| Environmental Disclosure | ENVPEP1402009EN |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
General Attributes
| Product Or Component Type | parallel interface module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001601 |
|---|---|
| ETIM 10 | EC001601 |
| ETIM 9 | EC001601 |
|---|
Output Attributes
| Number Of Output Channels | 8 |
|---|---|
| Output Voltage | 24 V DC transistor output |
| Output Protection Type | against overload, protection technology: current limiter |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV input common mode EN/IEC 61000-4-5, 1 kV output common mode EN/IEC 61000-4-5 |
|---|
Input Attributes
| Input Current Limits | 5-5 mA per input |
|---|---|
| Number Of Input Channels | 12 |
| Input Voltage Limits | 19.2...28.8 V per input |
|---|
