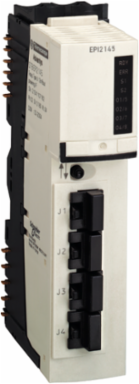

Schneider Electric STBEPI2145K Modicon STB Parallel Interface Kit, 12 Inputs 8 Outputs, IP20
- MPN: STBEPI2145K
- PPN: SCH-STBEPI2145K
- UNSPSC: 32151601
CAD
$491.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This parallel interface kit has 12 inputs channels and 8 output channels. It is a parallel interface kit with a rated supply voltage of I/O voltage of 24V DC, a current consumption of ≤100mA at 24V DC for sensor bus, ≤220mA at 24V DC for actuator bus for 150ms, 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is furnished with 4 RJ45 connectors for electrical connection. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 170mm (depth) x 28.1mm (height) and weighs 0.165kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Features
- Equipped with 12 input channels and 8 output channels, this parallel interface kit allows you to seamlessly bridge up to 12 sensors and 8 actuators back to your distributed control platform. By packing 20 total operational channels into a single module, it maximizes control density, effectively reducing the physical footprint and hardware overhead inside your automation enclosure.
- Engineered for the Modicon STB distributed I/O ecosystem, this kit offers open, flexible adaptation across most major industrial Fieldbus networks. This broad interoperability ensures that your specialized machinery whether deployed in high-speed packaging, bottling, assembly, or printing lines can communicate flawlessly without demanding an expensive or time-consuming overhaul of your underlying network architecture.
- This complete deployment kit includes the STBEPI2145 parallel module, an STBXBA3000 mounting base, and both terminal screw and terminal spring clamp connectors to fit your wiring preferences. It snaps directly onto standard 35 mm symmetrical DIN rails and utilizes 4 standard RJ45 connectors for rapid, point-to-point electrical connections, saving valuable installation time during system commission or retrofit.
- Designed to protect critical upstream logic and downstream equipment, this module integrates advanced short-circuit and overload protection with a 10 A time-lag fuse on the Power Distribution Module (PDM). The input channels feature resistor-limited protection, ensuring that field-level electrical anomalies or sudden line spikes will not cascade and cause catastrophic damage to your PLC backplane.
- Built to endure rigorous plant floor conditions, this IP20-rated interface kit functions flawlessly across a wide operating temperature range from -13 F to 158 F (-25 C to 70 C) and resists up to 30 gn of physical shock. To meet strict regulatory and safety standards, the entire kit is fully certified under FM Class 1 Division 2 for hazardous locations, alongside standard UL, and CSA approvals for industrial machinery compliance.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Depth | 170 mm |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current Consumption | <= 100 mA 24 V DC sensor bus, <= 100 mA 24 V DC sensor bus, <= 100 mA 24 V DC sensor bus, <= 100 mA 24 V DC sensor bus, <= 220 mA 24 V DC actuator bus for 150 ms, <= 220 mA 24 V DC actuator bus for 150 ms, <= 220 mA 24 V DC actuator bus for 150 ms, <= 220 mA 24 V DC actuator bus for 150 ms<= 100 mA 24 V DC sensor bus, <= 100 mA 24 V DC sensor bus, <= 100 mA 24 V DC sensor bus, <= 100 mA 24 V DC sensor bus, <= 220 mA 24 V DC actuator bus for 150 ms, <= 220 mA 24 V DC actuator bus for 150 ms, 100 mA 5 V DC logic bus50 mA 24 V DC actuator bus (with all 8 outputs at state 0)80 mA 24 V DC actuator bus per output at state 1 |
| Current State 1 Guaranteed | >= 2 mA, >= 2 mA |
| Product Specific Application | TeSys Quickfit, TeSys U |
| Vibration Resistance | +/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 4 RJ45 connectors |
| Hot Swapping Fallback | yes for standard NIMs |
| Overvoltage Category | II |
| Product Or Component Type | parallel interface kit |
| Returnability | Yes |
| Status Led | 1 LED (Green) module status (RDY)1 LED (Red) module error (ERR)2 LEDs (Green) switch position (S1 and S2)4 LEDs (Green) output status |
| Sustainable Packaging | No |
| Width Nominal | 128.3 mm |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Current State 0 Guaranteed | <= 0.5 mA, <= 0.5 mA |
| Kit Composition | terminal spring clamp connector, STBXBA3000 base, terminal screw type connector, STBEPI2145 module |
| Protection Type | power protection integrated fuse on PDM time lag 10 A, overload protection, short-circuit protectioninput protection resistor-limited |
| Certificate Agency | FM Class 1 Division 2, UL, CSA |
| Local Publishable Date | 2026-07-27 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Cold Swapping | yes |
| Fallback Status | state 0 basic NIMsuser configurable standard NIMs |
| Marking | CE |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Supply | power distribution module |
| Height Nominal | 28.1 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C (without derating), -25-70 °C (without derating)-25-70 °C (without derating), -25-70 °C (without derating) |
|---|---|
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Product Compatibility | power distribution module STBPDT3100/3105, mounting base STBXBA3000 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 conforming to IEC 61131-2 class 1 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | parallel interface kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Number Of Output Channels | 8 |
|---|---|
| Output Voltage Type | DC |
| Output Voltage | 24 V |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage Limits | -3...5 V at state 0, -3...5 V at state 0, 15...30 V at state 1, -3...5 V at state 0, -3...5 V at state 0 |
|---|---|
| Input Voltage Type | DC |
| Input Voltage | 24 V |
|---|---|
| Number Of Input Channels | 12 |
