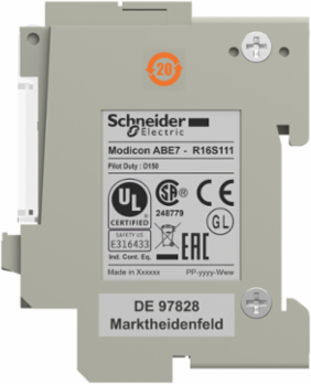

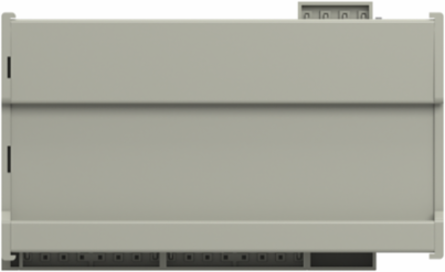

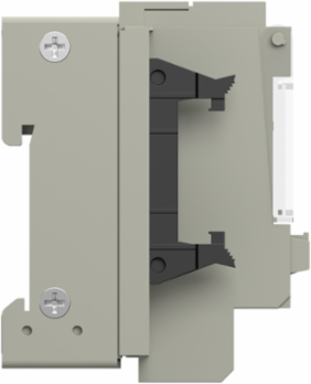

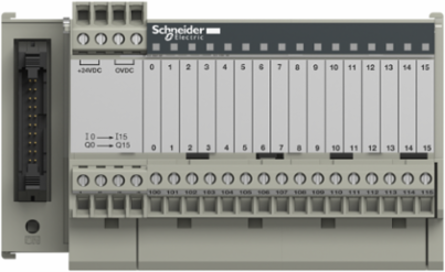

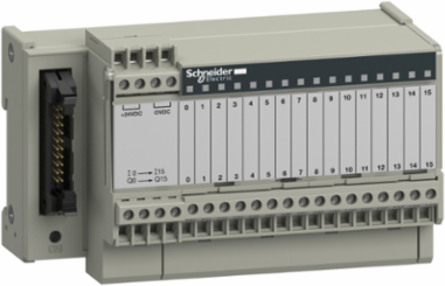

Schneider Electric ABE7R16S111 Modicon 16 Channel Electromechanical Relay Sub-Base, 125mm Width
- MPN: ABE7R16S111
- PPN: SCH-ABE7R16S111
CAD
$521.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia
Depth58 mm
Complementary Attributes
- Maximum Switching Voltage
- 250 V AC 50/60 Hz IEC 60947-5-1, 30 V DC IEC 60947-5-1
- Maximum Power Dissipation Per Channel In W
- 0.22 W PLC end)
Maximum Current Per Output Common12 A
Minimum Switching Current1 mA >= 5 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Contact Bounce Time
- <= 5 ms 1 NO, <= 5 ms 1 NO<= 5 ms 1 NO, <= 5 ms 1 NO
- Fixing Mode
- by clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit)
- Operating Time
- <= 10 ms coil energisation and NO closing, <= 10 ms coil energisation and NO closing, <= 6 ms coil de-energisation and NO opening, <= 6 ms coil de-energisation and NO opening<= 10 ms coil energisation and NO closing, <= 10 ms coil energisation and NO closing, <= 6 ms coil de-energisation and NO opening, <= 6 ms coil de-energisation and NO opening
- Certificate Agency
- DNV, UL, CSA, GL, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.7491380285790262
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 9.760067127684017
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1212029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Contacts Type And Composition
- 1 NO preactuator end
- Dielectric Strength
- 2000 V IEC 60947-1
- Installation Category
- II IEC 60664-1
- Mechanical Durability
- 20000000 cycles
- Number Of Channels
- 16
- Polarity Distribution
- polarity distribution contact common per group of 8 channels
- Product Or Component Type
- electromechanical output relay sub-base
- Range Of Product
- Modicon ABE7
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Returnability
- No
- Software Version
- v6.2.5-6
- Terminal Block Type
- removable
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 2102.4
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 77 mm
- [Ui] Rated Insulation Voltage
- 2000 V
- [Us] Rated Supply Voltage
- 24 V DC PLC end
- Drop-out Voltage
- 2.4 V 20 °C PLC end)
- Package Weight(Lbs)
- 348.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Durability500000 cycles 200 mA 24 V DC-13 10 ms preactuator end), 500000 cycles 400 mA 230 V AC-15 preactuator end), 500000 cycles 600 mA 230 V AC-12 preactuator end), 500000 cycles 600 mA 24 V DC-12 preactuator end)
Operating Rate In Hz10 Hz no load, 0.5 Hz at Ie
Switching Frequency<= 10 Hz, <= 0.5 Hz, <= 10 Hz, <= 0.5 Hz
Carbon Footprint Of The Distribution Phase [A4]0.051957184924175434, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0921432937429756, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]972 kg CO2 eq., 971.7360356355297
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Per Channel2 A preactuator end
Electrical Reliability1e-008
Max Immunity To Microbreaks5 ms
Number Of Channel Per Common8
Number Of Terminal Per Channel1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Sustainable PackagingNo
Threshold Tripping Voltage19.2 V 40 °C
Total Lifecycle Carbon Footprint982 kg CO2 eq.
Pep CodeENVPEP1212029_V4
Pep Verification Date2026-06-18
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %6
Width Nominal125 mm
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Drop-out Current0.5 mA 20 °C
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 982.3893412704599
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- electromechanical output relay sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC001284
ETIM 9EC001284
Output Attributes
- Maximum Current Per Output Common
- 12 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
