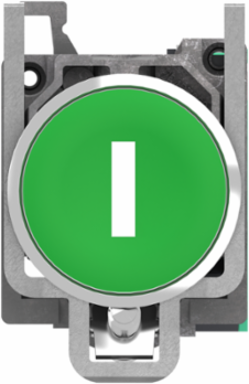

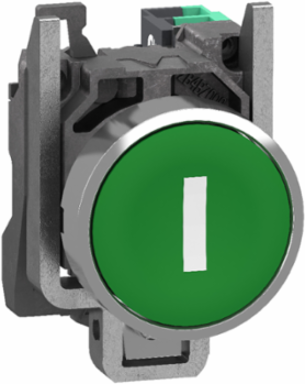

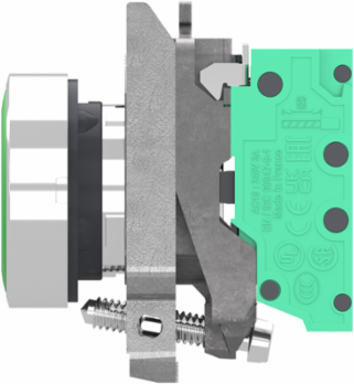

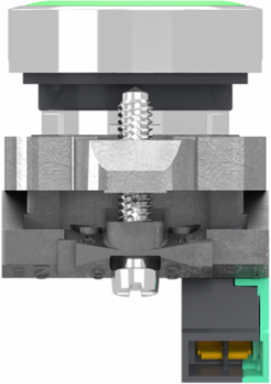

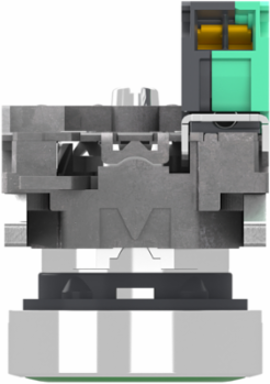

Schneider Electric XB4BA33115 Push button, Harmony XB4, metal, flush, green, 22mm, spring return, white marked I, 1 NO, compact push in terminals

MPN: XB4BA33115
PPN: SCH-XB4BA33115
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$61.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4 modular green push button operates with a spring return mechanism. It has a chromium-plated metal bezel and is supplied with a green flush cap, marked with I (white). It features 1 NO slow break contact and push-in terminal connections. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This product is made from metal, it weighs 76g. Operator is NEMA 4, 4X and 13 rated. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications This product meets many standards, including UL 508, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4 standards, and certifications such as BV, GL, CSA, LROS (Lloyds register of shipping), DNV and UL listed. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. "It is installed into a Ø 22mm panel cutout." Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes. "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."

Features

Turn to release reset
Simplicity and speed installation
Flexible and robust construction
Low-load electrical contact and high power
Wide range of operating temperature from -40°C to 70°C
Complies with UL listed BV, CSA, DNV, LROS and GL

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

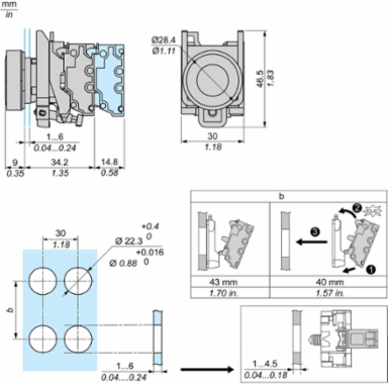

Depth	43.2 mm

Weight	79 g

Complementary Attributes

Ie Rated Operational Current	6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage	4 kV IEC 60947-1

Ui Rated Insulation Voltage	300 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	no, 0
Certificate Agency	EAC, IECEE CB Scheme, CCC, UL, CSA
Carbon Footprint Of The Distribution Phase A4	0.0103309134, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0158449822
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.061755
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	19 %
Compatibility Code	XB4
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Fixing Collar Material	zamak
Mechanical Durability	10000000 cycles
Operating Force	2.45 N NO changing electrical state
Operator Profile	green flush, I white)
Positive Opening	without
Product Or Component Type	push-button
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.7 kg CO2 eq.
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Connections Terminals	push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Data Source	extrapolated product
Width Nominal	30 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Shock Resistance	25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27

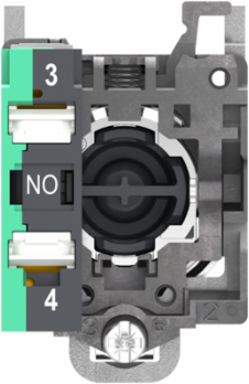

Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0.0999260973, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.6 kg CO2 eq., 0.5599534994
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	18 %
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Type And Composition	1 NO
Device Short Name	XB4
Head Type	standard
Mounting Diameter	22.5 mm
Operating Travel	2.05 mm NO changing electrical state)4.3 mm total travel)
Overvoltage Category	class I conforming to IEC 60536
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Sustainable Packaging	Yes
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	47 mm
Cap/Operator Or Lens Colour	green
Customs Code	8536509033
Short Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308035_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level	18 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.7478104923
Environmental Disclosure	ENVPEP2308035_V1-EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
