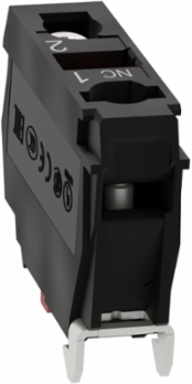

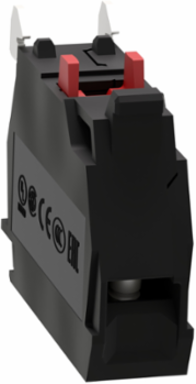

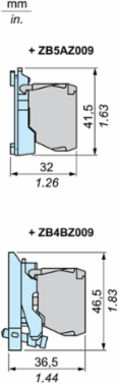

Schneider Electric ZBE102 Harmony XB4 Single Contact Block, 1 NC, Silver Alloy, Screw Clamp Terminals

MPN: ZBE102
PPN: SCH-ZBE102

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$17.35

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has clear color scheme for NO and NC contact block types. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

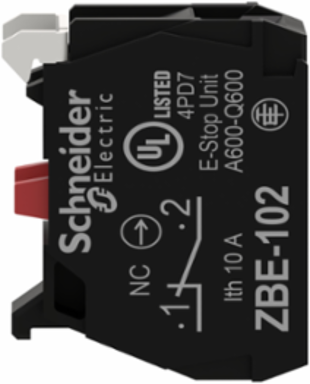

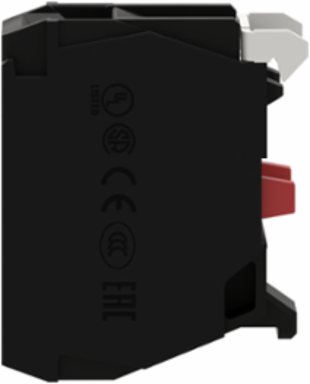

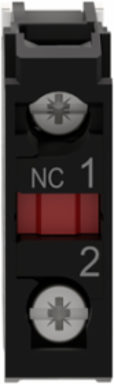

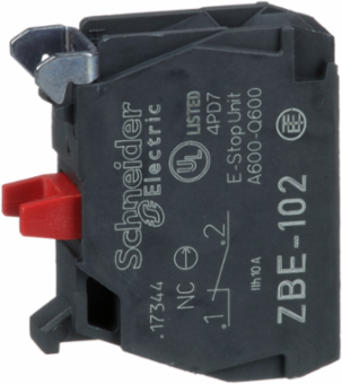

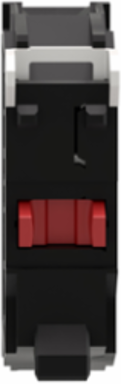

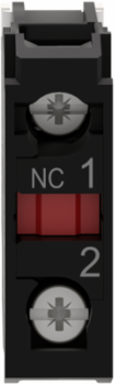

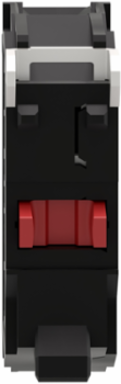

The ZBE102 is a single Normally Closed (NC) contact block, providing a reliable "stop" or "break" function for your control circuits. This is critical for industrial panel builders who need high-precision switching that guarantees a circuit interruption the moment a pushbutton is depressed.
Equipped with screw clamp terminals and the Schneider Electric anti-loosening system, this block is engineered to maintain high vibration resistance. This eliminates the need for periodic re-tightening campaigns, significantly lowering your long-term maintenance costs and preventing unexpected downtime.
This versatile component is fully compatible with both 22mm Harmony XB4 metal and XB5 plastic heads, provided you use the appropriate fixing collar. This standardization allows you to simplify your inventory by using one contact block reference across various machine aesthetic styles.
The modular design allows you to stack multiple ZBE blocks to create custom contact sequences, with a maximum of three rows possible. This "So What?" benefit means you can control multiple complex functions from a single operator head, maximizing panel space without compromising performance.
When properly mounted within an enclosure, this block supports IP66 and IP69 ratings, offering robust protection against dust and high-pressure cleaning. It is rated for a wide operating temperature range of $-40^{\circ}C$ to $+70^{\circ}C$, ensuring reliable performance in both cold storage and high-heat industrial environments.
The ZBE102 is certified to meet global requirements, including EN/IEC, UL, CSA, and CE marking. For industrial designers, this ensures your panels are ready for international export and meet all necessary machinery safety directives.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contacts Material	silver alloy (Ag/Ni), silver alloy (Ag/Ni)
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.016344580322401332
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.1 kg CO2 eq., 0.05580600333518621
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	13 %
Compatibility Code	ZBE
Contact Operation	slow-break
Contacts Usage	standard contacts
Mechanical Durability	10000000 cycles
Operating Force	2 N NC changing electrical state
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	contact block
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	0.1 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals 8 Connections Terminals	screw clamp terminals
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Pushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 & IEC 60947-5-4.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	9.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Composition Code	C1 9 )C2 7 )C3 6 )C4 4 )C5 5 )C6 3 ), C7 4 )C8 2 ), C9 3 ), C12 6 ), M1 6 ), M2 4 ), M3 4 ), M5 2 ), M6 2 ), M7 6 ), M8 4 ), M9 2 ), SF1 3 ), SF2 2 ), MF1 2 ), MF2 2 ), C10 2 ), M4 2 )C13 1 )
Range Of Product	Harmony XB4, Harmony XB5
Certificate Agency	CSA, GOST, BV, DNV, LROS (Lloyds register of shipping), CCC, UL
Carbon Footprint Of The Distribution Phase [A4]	0.0011769038354641468, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0063390216787103945, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	23 %
Contact Block Type	single
Contacts Type And Composition	1 NC
Device Short Name	ZBE
Mounting Of Block	front mounting
Operating Travel	1.5 mm NC changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Sale Per Indivisible Quantity	5
Software Version	v6.2.5-6
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Contacts Composition 6	1 NC
Pep Code	ENVPEP2304014EN
Pep Verification Date	2024-06-09
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Recyclability Potential In %	98
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8532290040

Environment Attributes Main
