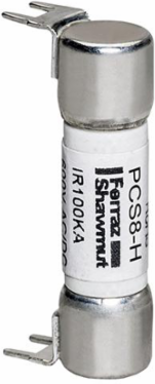

Mersen PCS8-H PC Mount Fast-Acting Fuse 600V 8A Midget Series, 1.53 Inch Length
Mersen PCS8-H PC Mount Fast-Acting Fuse 600V 8A Midget Series, 1.53 Inch Length
- MPN: PCS8-H
- UPC: 782001141653
- PPN: FER-PCS8-H
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$87.56/ EA
Description
PCS series of semiconductor direct-mountable fuses address the need for electrical protection at the PC board. These fuses help PCB users/manufacturers reduce parts by eliminating clips and/or fuseholders and allowing automated assembly. PCS fuses are AC and DC rated and are extremely current-limiting. They will protect semiconductors, main frame boards, circuit breakers with low interrupting capabilities and other critical components. PCS fuses bring I2t protection, higher ampere, voltage and interrupting ratings and are UL Component Recognized.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Midget
- Mounting
- PC Mount
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 0.021 lb
Rated voltage DC UL600 V
Ampere Rating8 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeDouble Hole Mount
Length1.53 in
