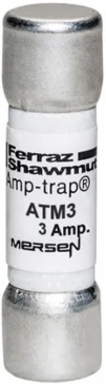

Mersen ATM3 Fuse Amp-Trap® Midget 600V 3A Fast-Acting, 1.5 Inch Length, 100kA I.R.
- MPN: ATM3
- UPC: 782001900724
- PPN: FER-ATM3
CAD
$8.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- Engineered as a premium fast-acting component, the ATM3 responds instantly to overcurrent spikes and short circuits. This rapid-response capability isolates faults within milliseconds, shielding vulnerable control components, small transformers, and solid-state instrumentation from terminal thermal damage.
- Featuring a robust dual-voltage rating of 600V AC and 600V DC, this midget fuse provides flexible, multi-platform protection. It seamlessly transitions between high-voltage industrial machinery, standard commercial lighting panels, and specialized DC installations like photovoltaic solar arrays without requiring a change in inventory.
- Boasting a massive 100,000-amp interrupting rating (I.R.), this single-element fuse safely stops severe fault currents under high-energy conditions. It eliminates the risk of catastrophic arc flashes or violent physical housing failure inside your control panels, ensuring local system faults do not trigger widespread facility downtime.
- Built to the universal 13/32 in times 1-1/2 in (10.3 times 38.1 mm) mechanical footprint, the ATM3 serves as a flawless, drop-in substitute. It fits securely into any standard midget open-style fuse block or finger-safe UltraSafe™ fuse holder, eliminating hardware retrofitting delays and easing routine industrial maintenance tasks.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 100 kA
- Length
- 1.5 in
- Frequency
- 50/60 Hz
- Fuse Class
- Midget
- Mounting
- Clip
- Weight
- 0.017 lb
Amperage3 A
Fuse TypeFast-Acting
Dimensions10 x 38 mm
Connection TypeFerrule
Connection MaterialTin-Plated Copper
MaterialGMG
CertificationUL Listed, DC Listed, CSA Certified, RoHS Compliant
