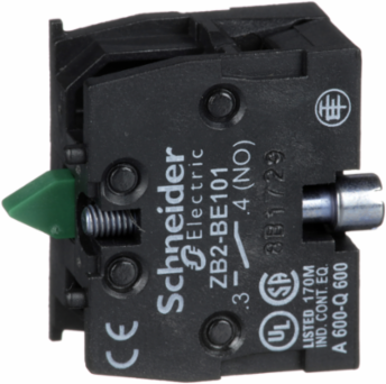

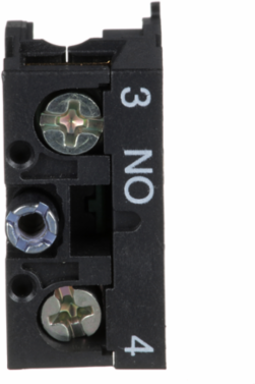

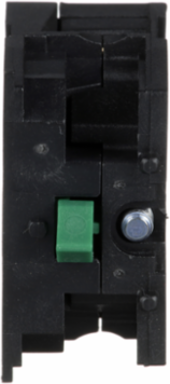

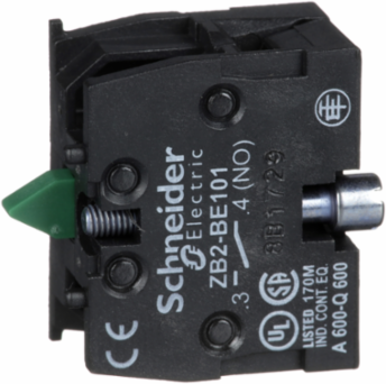

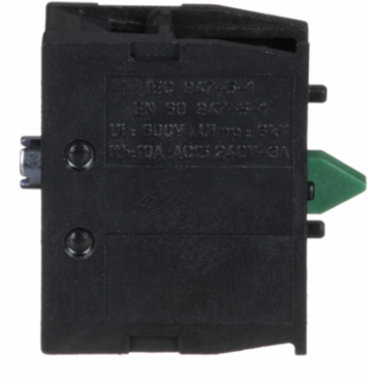

Schneider Electric ZB2BE101 Harmony XAC Contact Block, 1NO, Front Mounting, 10A, Spring Return
- MPN: ZB2BE101
- PPN: SCH-ZB2BE101
CAD
$21.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The ZB2BE101 is a 22mm Normally Open (NO) contact block. While originally part of the legacy ZB2 series, it remains a critical spare part and a highly compatible component for the current Harmony XB4 (metal) and XB5 (plastic) ranges, as well as XAC pendant stations. It acts as the electrical switch that closes a circuit when the associated push button or selector switch is pressed.
- This is a front-mounting contact block, meaning it clips onto the back of a mounting collar (such as the ZB4BZ009). Its "snap-fit" design allows for tool-free installation and removal, making it a favorite for Canadian panel builders who need to quickly add or replace logic in a control circuit.
- Designed for industrial-grade performance, the ZB2BE101 is rated for 10 Amps (thermal current) and up to 600V AC. It is categorized under A600/Q600 pilot duty, meaning it can reliably handle the high inrush currents of contactor coils and industrial relays commonly found in Canadian manufacturing and processing plants.
- The block utilizes slow-break contact operation. This means the internal contacts move at the same speed as the push button operator. This is standard for most industrial signaling and control logic where a fast "snap action" is not specifically required, providing a simpler and often more durable mechanical design.
- Equipped with heavy-duty screw clamp terminals, the ZB2BE101 ensures a secure, gas-tight connection. These terminals are designed to resist loosening caused by the vibration of heavy machinery critical for maintaining electrical continuity in Canadian forestry, mining, and industrial automation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Singapore, United States
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-148 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-165 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
- Connections - Terminals
- screw clamps terminals, 1 x 2.5 mm² with or without cable end, screw clamps terminals, 2 x 1.5 mm² with or without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0026153285, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0000617518, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.0458817143
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Block Application
- single speed
- Contact Operation
- slow-break
- Electrical Circuit Type
- control circuit
- Mechanical Durability
- 1000000 cycles
- Operating Force
- 13-15 N
- Product Or Component Type
- contact block
- Returnability
- Yes
- Sustainable Packaging
- No
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.015W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In %
- 80
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Short-circuit Protection
- 10 A fuse protection cartridge gG (gl)
- Package Weight(Lbs)
- 15.000 g
- Warranty (In Months)
- 18
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 0.742
- Customs Code
- 8544422000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyIEC 60947-5-1, UL 508, IEC 60204-32, CSA C22.2 No 14
Terminals Description Iso N°1(13-14)NO, (13-14)NO, (13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0100128467
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2365109489
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameZB2
Contact Block Typesingle
Contacts Type And Composition1 NO
Electrical Shock Protection Classclass II conforming to IEC 61140
Mounting Of Blockfront mounting
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XAC
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2211045EN
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]0.742
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]0.742
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C, -25-70 °C, -25-70 °C
- Product Compatibility
- XB4, XAPS2, XACA, XB5
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211045EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2211045EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.2950825902
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contact block
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
