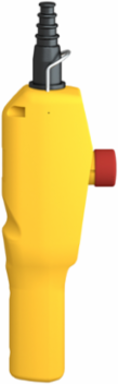

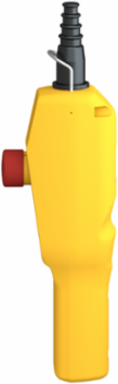

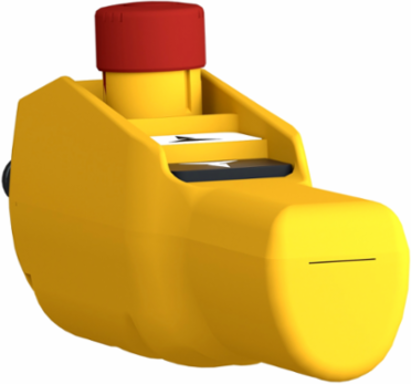

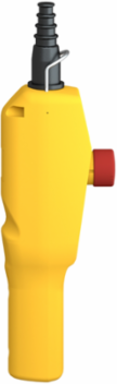

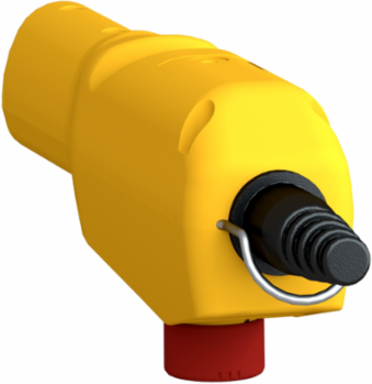

Schneider Electric XACA2073 Harmony XAC Yellow Pendant Control Station, 2 Push Buttons, IP65
- MPN: XACA2073
- PPN: SCH-XACA2073
CAD
$235.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XAC, yellow pendant station for hoist motor with pistol grip has 2-speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. It offers movement in 2 speeds (low and high) for each movements. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Control Station Color
- yellow
Complementary Attributes
- Rated Operational Power In W
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Maximum Resistance Across Terminals25 MOhm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Control Button Type
- stop push-button Ø 30 mm 1 NC latching, first push-button 2 NO (2 step) raise, slow-fast, second push-button 2 NO (2 step) lower, slow-fast
- Certificate Agency
- UL, CSA
- Terminals Description Iso N°1
- (23-24)NO_CL, (13-14)NO, (23-24)NO_CL, (13-14)NO
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0730545455, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0017410629, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 121.5
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Station Application
- control of 2-speed hoist motor
- Control Station Type
- double insulated
- Device Short Name
- XACA pistol grip
- Enclosure Material
- polypropylene
- Mechanical Durability
- 1000000 cycles
- Operating Force
- 13-15 N
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0709005EN
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Energy Model - End Of Life [C1-c4]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contact Operationstaggered, slow-break
Terminal Identifier(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Terminals Description Iso N°2(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3154405594
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.7291468531
Local Data StatusPublishable
Return IndicatorY
Future Msrp157.30
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Cable Entryrubber sleeve with stepped entry 7-15 mm
Control Station Composition2 push-buttons + 1 emergency stop
Control Typeintuitive
Electrical Circuit Typecontrol circuit
Enclosure Typecomplete ready for use
Mechanical Interlockingwith mechanical interlocking
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typependant control station
Range Of ProductHarmony XAC
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Control Station Coloryellow
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Czech Republic
Energy Model - Use [B6]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Recyclability Potential, In %32
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Short-circuit Protection10 A fuse protection cartridge gG
Package Weight(Lbs)363.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- ZB2BE102 for emergency stop, ZB2BE101 + ZB2BE201 for each direction
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP0709005EN
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint2.119383021
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000234
ETIM 9EC000234
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
