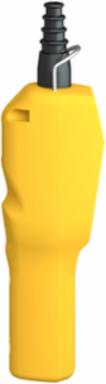

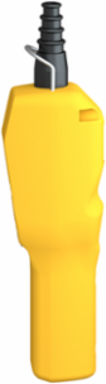

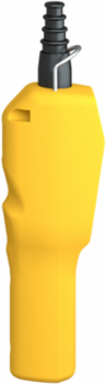

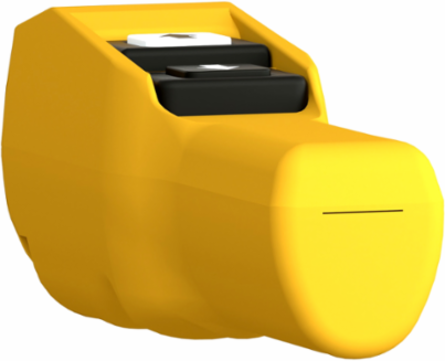

Schneider Electric XACA215 Harmony XAC Pendant Control Station, Yellow, 2 Push Buttons, IP65
- MPN: XACA215
- PPN: SCH-XACA215
CAD
$202.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

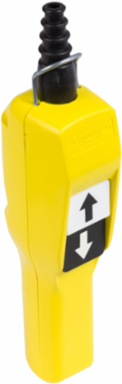

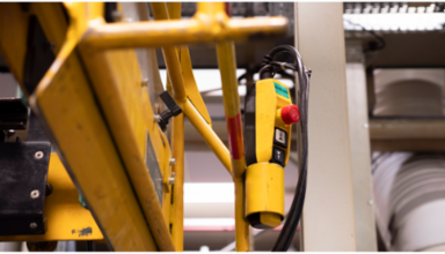

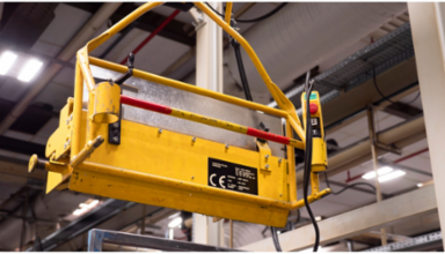

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XAC
- Device Short Name
- XACA pistol grip
Product Or Component Typependant control station
Complementary
- Product Certifications
- UL || CSA
- Control Station Application
- control of single speed hoist motor
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/ISO 13850: 2006 || UL 508 || EN/IEC 60204-32 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Shock Resistance
- 100 gn IEC 60068-2-27
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Product Compatibility
- ZB2BE102 + ZB2BE101 for each direction
- Ip Degree Of Protection
- IP65 IEC 60529
- Control Type
- intuitive
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Control Station Composition
- 2 booted push-buttons
- Contact Operation
- slow-break
- Control Station Colour
- yellow
- Operating Force
- 13-15 N
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Enclosure Material
- polypropylene
- Protective Treatment
- TH
Ik Degree Of ProtectionIK08 conforming to EN 50102
Terminal Identifier(11-12)NC || (13-14)NO
Terminals Description Iso N°1(13-14)NO || (11-12)NC
Maximum Resistance Across Terminals25 MOhm

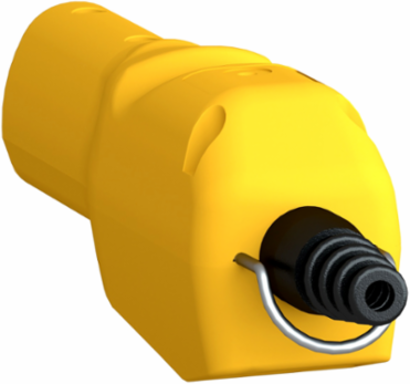

Cable Entryrubber sleeve with stepped entry 7-15 mm
Enclosure Typecomplete ready for use
Net Weight0.32 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Control Station Typedouble insulated
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Ambient Air Temperature For Storage-40-70 °C
Overvoltage Categoryclass II IEC 61140
Mechanical Interlockingwith mechanical interlocking
Mechanical Durability1000000 cycles

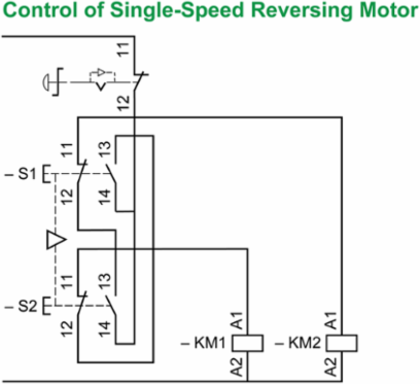

Control Button Typefirst push-button 1 NC + 1 NO raise, slow || second push-button 1 NC + 1 NO lower, slow
Electrical Circuit Typecontrol circuit
Contact Code DesignationA600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP070905EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Contractual warranty
- Warranty
- 18 months
