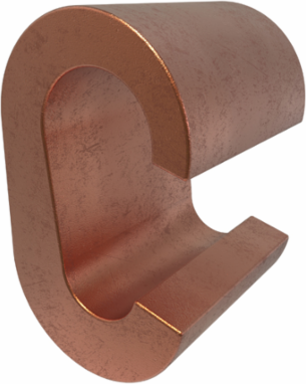

ILSCO ULT-8-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2/0-1/0 Sol, Tap Range 2-8 Sol, UL, CSA
- MPN: ULT-8-Z
- UPC: 783669930825
- PPN: ILC-ULT-8-Z
CAD
$29.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding C Crimp, Main Conductor Range 2/0-1/0 Sol, Tap Range 2-8 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.925 in | 23.495 mm |
|---|---|
| Weight | 0.171 lbs |
| Length | 1.35 in | 34.29 mm |
|---|---|
| Width | 0.812 in | 20.6248 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Height (mm) | 23.495 |
|---|---|
| Width (mm) | 20.6248 |
| Length (mm) | 34.29 |
|---|
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
Additional Class Attributes
| Barrel Marking | Hard |
|---|
| ILSCOs Die Index Number | O |
|---|
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Bare |
|---|
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 2/0 Sol - 1/0 Sol |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 2/0 Str - 1/0 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 2 Sol - 8 Sol |
|---|---|
| Conductor Range CU Stranded (Secondary, tap, load) | 2 Str - 8 Str |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-1 |
| Carton Quantity Description | STD PACK QTY 50 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366993082 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
