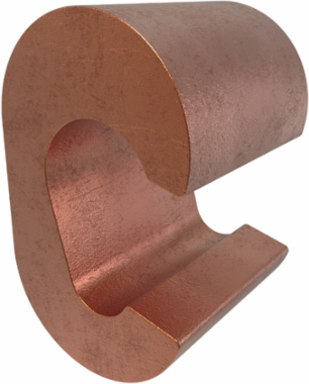

ILSCO ULT-10-Z Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 2-6 Sol, UL, CSA
- MPN: ULT-10-Z
- UPC: 783669930856
- PPN: ILC-ULT-10-Z
CAD
$49.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 2-6 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.628 in | 41.3512 mm |
|---|---|
| Weight | 0.316405769346442 lbs |
| Length | 1 in | 25.4 mm |
|---|---|
| Width | 1.075 in | 27.305 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Height BX (IN) | 2 |
|---|---|
| Length (mm) | 25.4 |
| Width BX (IN) | 6.188 |
| Height (mm) | 41.3512 |
|---|---|
| Weight BX (LB) | 3.563 |
| Width (mm) | 27.305 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 467 Listed, UL 486A/B Listed |
Additional Class Attributes
| Barrel Marking | Hard |
|---|
| ILSCOs Die Index Number | D3 |
|---|
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Bare |
|---|
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 4/0 Sol - 3/0 Sol |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 4/0 Str - 3/0 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 2 Sol - 6 Sol |
|---|---|
| Conductor Range CU Stranded (Secondary, tap, load) | 2 Str - 6 Str |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-1 |
| Carton Quantity Description | STD PACK QTY 25 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366993085 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
