ILSCO

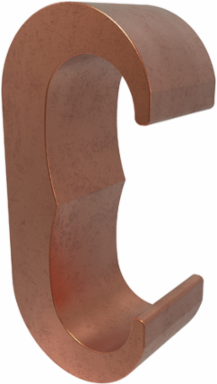

ILSCO ELT-8 Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #5-#6, Tap Range 500-300, Tap Rebar Size #5-#6, UL, CSA

  • MPN: ELT-8
  • UPC: 783669257441
  • PPN: ILC-ELT-8

CAD

$85.65

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #5-#6, Tap Range 500-300, Tap Rebar Size #5-#6, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height2.818 in | 71.5772 mm
Weight0.482 lbs
Length1.328 in | 33.7312 mm
Width0.875 in | 22.225 mm

Dimensions

Height BX (IN)2
Length (mm)33.7312
Width BX (IN)5
Height (mm)71.5772
Weight BX (LB)2.962
Width (mm)22.225

Testing Standards

Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed

Additional Class Attributes

ILSCOs Die Index Number1011

Material and Finish

Conductor MaterialCopper
MaterialCopper
Connector FinishBare

Conductor Ranges

Conductor Range CU Stranded (Primary, run, main, line)500 kcmil - 300 kcmil
Ground Rod Size5/8
Rebar Size(s) Secondary#5 (5/8), #6 (3/4)
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 300 kcmil
Rebar Size(s) Main#6 (3/4), #5 (5/8)

Additional Technical Specifications

Conductor TypeStranded

General

Bag Quantity1
Direct BurialYes
NEMA CodeS-573-3
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedNo
UPC Code78366925744

Color

ColorCopper
Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #5-#6, Tap Range 500-300, Tap Rebar Size #5-#6, UL, CSA
