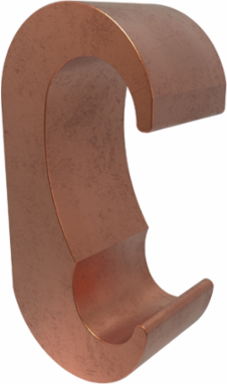

ILSCO ELT-7 Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #5, Tap Range 3/0-6 Sol, Tap Rebar Size #3-#4, UL, CSA
- MPN: ELT-7
- UPC: 783669257427
- PPN: ILC-ELT-7
CAD
$47.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #5, Tap Range 3/0-6 Sol, Tap Rebar Size #3-#4, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.672 in | 67.8688 mm
- Weight
- 0.505 lbs
Length1.325 in | 33.655 mm
Width0.875 in | 22.225 mm
Dimensions
- Height BX (IN)
- 2
- Length (mm)
- 33.655
- Width BX (IN)
- 5
Height (mm)67.8688
Weight BX (LB)3.1
Width (mm)22.225
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed
Additional Class Attributes
- ILSCOs Die Index Number
- 1011
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Solid (Secondary, tap, load)
- 2 Sol - 6 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 3/0 Str - 6 Str
- Rebar Size(s) Main
- #5 (5/8)
Conductor Range CU Stranded (Primary, run, main, line)500 kcmil - 300 kcmil
Ground Rod Size5/8
Rebar Size(s) Secondary#3 (3/8), #4 (1/2)
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedNo
UPC Code78366925742
Color
- Color
- Copper
