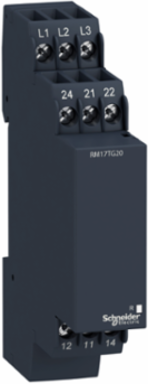

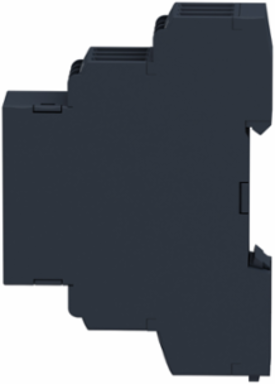

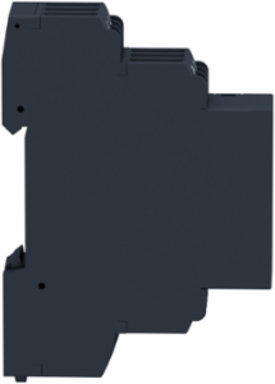

Schneider Electric RM17TG20 Harmony 3-Phase Control Relay, 5A, 17.5mm Width, 208-480V AC
- MPN: RM17TG20
- PPN: SCH-RM17TG20
CAD
$149.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Control Relays
- Switching Capacity In Va
- 1250 VA
- Relay Name
- RM17TG
- Relay Type
- control relay
- Time Delay Type
- without
- [Uc] Control Circuit Voltage
- 208...440 V
Measurement Range208...440 V voltage AC
Product Or Component Type3-phase control relay
Contacts Type And Composition2 C/O
Product Specific Applicationfor 3-phase supply
Relay Monitored Parametersphase sequence || phase failure detection (2 or more phase cut)
Complementary
- Voltage Range
- 183...484 V
- Minimum Switching Current
- 10 mA 5 V DC
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 2 C/O
- Marking
- CE
- Operating Position
- any position without derating
- Net Weight
- 0.13 kg
- Measurement Voltage Limits
- 183-484 V AC
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Overvoltage Category
- III IEC 60664-1
- Mounting Support
- 35 mm symmetrical DIN rail IEC 60715
- Local Signalling
- relay ON LED yellow)
- Housing Material
- self-extinguishing plastic
- Width
- 17.5 mm
- Electrical Durability
- 10000 cycles
- Supply Frequency
- 50/60 Hz +/- 10 %
Safety Reliability DataB10d = 850000 || MTTFd = 924.6 years
Control Circuit Voltage Limits12 % + 10 % Un
[Us] Rated Supply Voltageself-powered
Power Consumption In Va0-22 VA 400 V AC 50 Hz
Voltage Detection Threshold< 100 V AC
Response Time<= 130 ms in the event of a fault)
Utilisation CategoryAC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Maximum Switching Voltage250 V AC || 250 V DC
Control Typewithout test button
[Ui] Rated Insulation Voltage400 V IEC 60664-1
Supply Voltage Limits183-484 V AC
Nominal Output Current5 A
Mechanical Durability30000000 cycles
Control Circuit Frequency50...60 Hz +/- 10 %
Tightening Torque0.6-1 N.m IEC 60947-1
Run-Up Delay At Power-Up650 ms
Environment
- Product Certifications
- GOST || C-Tick || UL || CSA || GL
- Non-Dissipating Shock Wave
- 4 kV
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6-2
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Directives
- 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
StandardsIEC 60255-1
Dielectric Test Voltage2 kV AC 50 Hz, 1 min
Shock Resistance15 gn 11 ms IEC 60255-21-1
Vibration Resistance0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Pollution Degree3 IEC 60664-1
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1504008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
