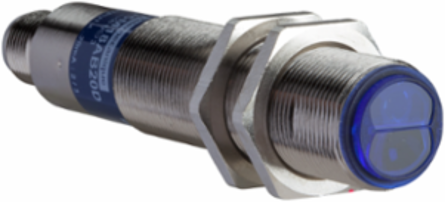

Telemecanique Sensors XU5M18AB20D Photoelectric sensors XU, XU5, diffuse, analog, Sn 0.4 m, 12...24VDCM12
- MPN: XU5M18AB20D
- PPN: TES-XU5M18AB20D
- UNSPSC: 39121528
CAD
$352.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XU5, diffuse, analog, Sn 0.4 m, 12...24VDCM12
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | 1 male connector M12, 4 pins |
|---|---|
| Type Of Output Signal | analogue |
| Emission | infrared diffuse |
| Sensor Name | XU5 |
| Analogue Output Range | 4...20 mA |
| Series Name | Application material handling |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor |
| Discrete Output Type | PNP |
|---|---|
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Line Of Sight Type | axial |
| Material | metal |
| Wiring Technique | 3-wire |
| Detection System | diffuse |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 0.05-0.4 m diffuse |
Complementary
| Current Consumption | <= 30 mA no-load |
|---|---|
| Diameter | 18 mm |
| Setting-Up | sensitivity adjustment with potentiometer |
| Length | 95 mm |
| Maximum Delay First Up | 50 ms |
| Supply Voltage Limits | 10-30 V DC |
| Enclosure Material | Nickel Plated Brass |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Switching Frequency | <= 20 Hz |
|---|---|
| Status Led | 1 LED green)output state |
| Lens Material | PMMA |
| Net Weight | 0.075 kg |
| Maximum Sensing Distance | 0.4 m |
| Switching Capacity In Ma | 4...20 mA |
| Add On Output | with analogue output |
Environment
| Product Certifications | CE || UL || CSA |
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz) IEC 60068-2-6 |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111208EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
