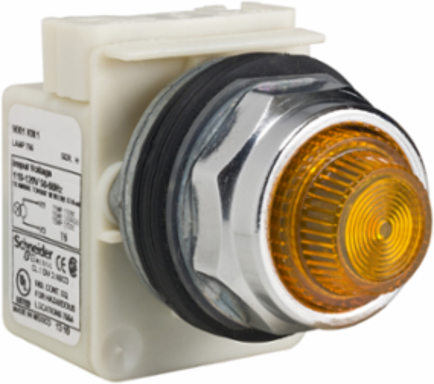

Schneider Electric 9001KP1A31 Harmony 9001K Pilot Light, 30 mm, Amber, 110-120V AC, Fresnel Lens

MPN: 9001KP1A31
UPC: 785901032038
PPN: SCH-9001KP1A31
UNSPSC: 39121534

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$198.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, amber pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Complementary Attributes

Us Rated Supply Voltage	110...120 V110...120 V AC

Important Information Attributes

Light Block Supply	via transformer 120 V AC 50/60 Hz 110 V AC 50/60 Hz, via integral transformer
Certificate Agency	CE, CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bezel Material	metal
Device Short Name	K
Lens Type	fresnelfresnel plastic
Operating Mode	normal
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony 9001K
Shape Of Screw Head	round
Sustainable Packaging	Yes
Connections Terminals	screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Light Source	bulb, incandescent
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Product Kit Identifier	N
Bulb Base	BA 9s
Lens Material	polycarbonate
Mounting Diameter	30 mm
Operating Position	any position
Product Or Component Type	pilot light
Returnability	No
Supply Frequency	50...60 Hz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colour	amber
Customs Code	8531809051

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Nema Degree Of Protection	NEMA 3R/6/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
