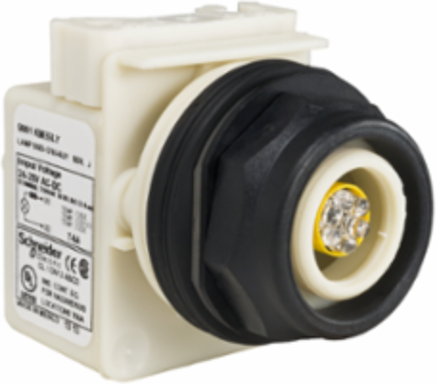

Square D 9001SKP35LY Harmony LED Pilot Light Head, 30 mm, Yellow, 24-28V
- MPN: 9001SKP35LY
- UPC: 785901743668
- PPN: SCH-9001SKP35LY
CAD
$182.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony LED pilot light head from Schneider Electric is expertly designed for automation and control applications, providing reliable visual signaling in various industrial environments. With a compact 30 mm size and vibrant yellow illumination, it effectively indicates operational status, enhancing safety and efficiency on the work floor. Operating within a voltage range of 24-28V, this pilot light head ensures compatibility with a wide array of systems, making it a versatile choice for control panels and machinery. Its durable construction and long-lasting LED technology promise reduced maintenance and improved performance, making it an essential component for enhancing control interfaces in any automated setup.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24...28 V AC/DC
- Conventional Free Air Thermal Current
- 10 A
- Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Size
- 30 mm
- CAD Overall Width
- 54 mm
- CAD Overall Depth
- 42 mm
- Tightening Torque
- 0.8 N.m IEC 60947-1
- Cap/Operator Or Lens Colour
- without cap
- Shape Of Signaling Unit Head
- round
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm6 IEC 60947-1
- Protective Treatment
- TC
- NEMA Degree Of Protection
- NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40 to 70 6C
- Product Certifications
- NEMA, UL 508
- Country of Origin
- Mexico
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Rated Insulation Voltage250 V IEC 60947-1
Operating Positionany position
Mounting Diameter30 mm
CAD Overall Height70 mm
Net Weight0.181 kg
Light Sourceyellow LED
Bulb BaseBA 9s
Shape Of Screw Headcross slotted
Electrical Shock Protection Classclass II IEC 61140
IP Degree Of ProtectionIP66 IEC 60529
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Ambient Air Temperature For Operation-25 to 70 6C
StandardsUL 508, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, CSA C22.2 No 14
Materialplastic (bezel)
