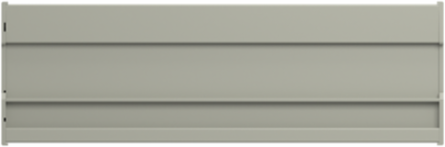

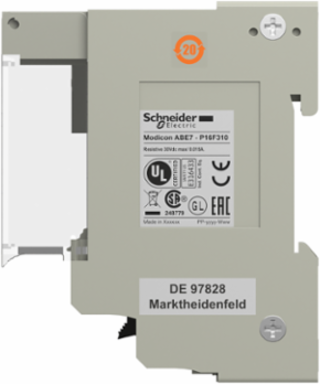

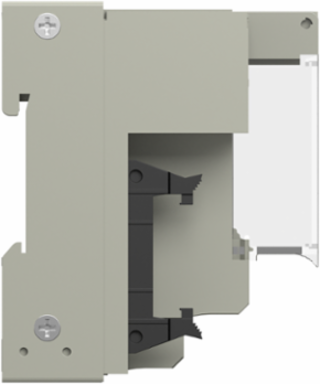

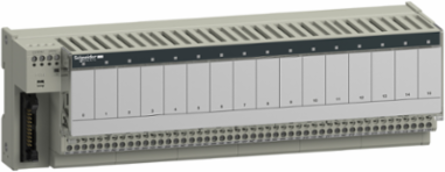

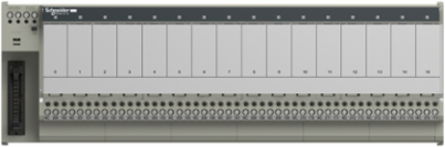

Schneider Electric ABE7P16F310 Modicon ABE7 16-Channel Relay Sub-Base, 272mm Width, IP2X Protection
Schneider Electric ABE7P16F310 Modicon ABE7 16-Channel Relay Sub-Base, 272mm Width, IP2X Protection
- MPN: ABE7P16F310
- PPN: SCH-ABE7P16F310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$311.28/ EA
Description
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This plug-in relay sub base offers 16 channels with 2 terminals per channel. The input sub base offers a rated supply voltage of 19V to 30V. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 272mm (width) x 74mm (depth) x 89mm (height). It weighs 0.85kg. It is suitable for all types of industrial applications. This product is certified by GL, DNV, LROS, CSA, UL, BV and EAC. It is compatible with ABS7S33E, ABR7 and ABS7E. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Environment
- Product Certifications
- GL || DNV || CSA || UL || EAC
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP2X IEC 60529
Resistance To Incandescent Wire750 °C IEC 60695-2-11
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN
Complementary
- Height
- 89 mm
- Short-Circuit Protection
- 1 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Status Led
- 1 LED per channel (green) channel status || 1 LED (green) power ON
- Net Weight
- 0.85 kg
- Polarity Distribution
- volt-free
- Maximum Supply Current
- 1 A
- Width
- 272 mm
- Depth
- 74 mm
- [Ui] Rated Insulation Voltage
- 300 V coil circuit/contact circuits IEC 60947-1 || 2000 V terminals/mounting rails
Isolation Plc/Operative Partyes
[Uimp] Rated Impulse Withstand Voltage2.5 kV
Installation CategoryII IEC 60664-1
Fixing Modeby clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Tightening Torque0.6 N.m flat Ø 3.5 mm
Supply Circuit TypeDC
Voltage Drop On Power Supply Fuse0.3 V
Product CompatibilityABS7S33E || ABR7 || ABS7E
Specifications
- Range Of Product
- Modicon ABE7
- Number Of Terminal Per Channel
- 2
- Number Of Channels
- 16
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
Product Or Component Typesub-base for plug-in relay
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid
Sub-Base Typeinput sub-base
